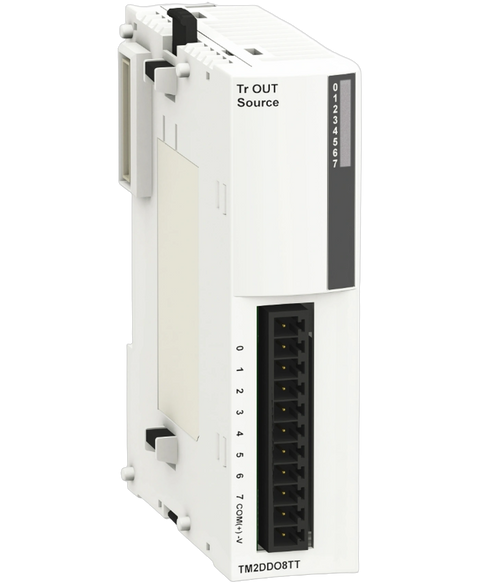

Schneider Electric TM2DDO8TT
The TM2DDO8TT from Schneider Electric is a discrete output module designed for reliable automation tasks. This unit operates with a nominal output voltage of 24 V and features 8 outputs, each capable of sourcing a current of 0.5 A. Its efficient design makes it suitable for various industrial applications that require clear binary control.
This Schneider Electric TM2DDO8TT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26899056373.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | Discrete output module |
| Discrete output number | 8 |
| Discrete output type | Transistor |
| Discrete output voltage | 24 V |
| Discrete output logic | Source |
| Discrete output current | 0.5 A |
| Range compatibility | Advantys OTB | Twido |
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 0.6 A |
| Maximum current per output common | 4 A |
| Number of common point | 1 |
| Response time | 450 µs from state 0 to state 1 | 450 µs from state 1 to state 0 |
| [Ures] residual voltage | 0.4 V at state 1 |
| Maximum leakage current | 0.1 mA |
| Maximum inductive load | 10 mH |
| Maximum tungsten load | 12 W |
| Short-circuit protection | With automatic reactivaton |
| Overload protection | With automatic reactivaton |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 10 mA at 5 V DC at state 1 for all output | 20 mA at 24 V DC at state 1 for all output |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.085 kg |
| Depth | 84.6 mm |
| Height | 90 mm |
| Width | 27.3 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 10.0 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 184.0 g |
