Schneider Electric TM2DDO32TK

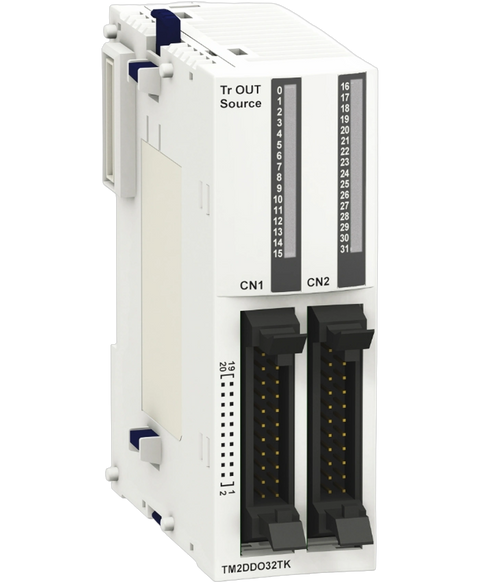

The TM2DDO32TK is a discrete output module manufactured by Schneider Electric. This unit features a total of 32 outputs, operating at a voltage of 24V. Each output utilizes a transistor type for effective control in various applications.
This Schneider Electric TM2DDO32TK is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805575587.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | Discrete output module |
| Discrete output number | 32 |
| Discrete output type | Transistor |
| Discrete output voltage | 24 V |
| Discrete output logic | Source |
| Discrete output current | 0.4 A |
| Range compatibility | Advantys OTB | Twido |
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 0.48 A |
| Maximum current per output common | 2 A |
| Number of common point | 2 |
| Response time | 450 µs from state 0 to state 1 | 450 µs from state 1 to state 0 |
| [Ures] residual voltage | 0.4 V at state 1 |
| Maximum leakage current | 0.1 mA |
| Maximum inductive load | 10 mH |
| Maximum tungsten load | 9.6 W |
| Short-circuit protection | With automatic reactivaton |
| Overload protection | With automatic reactivaton |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 25 mA at 5 V DC at state 1 for all output | 40 mA at 24 V DC at state 1 for all output |
| Local signalling | 2 display blocks |
| Electrical connection | 1 connector HE10 |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.105 kg |
| Depth | 81.3 mm |
| Height | 90 mm |
| Width | 33.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 10.0 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 210.0 g |
