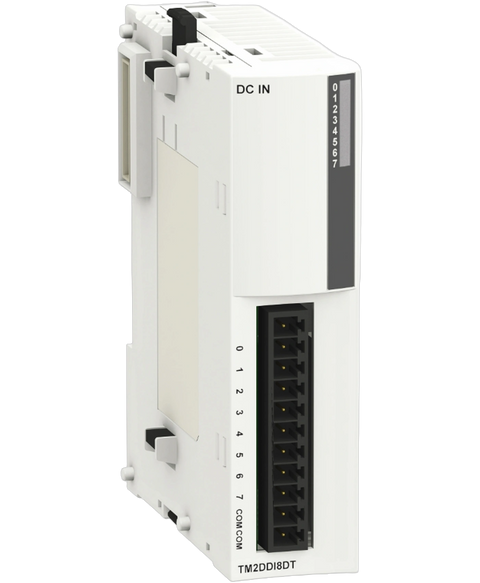

Schneider Electric TM2DDI8DT
The TM2DDI8DT discrete input module by Schneider Electric is designed for use in Modicon series applications. It features eight discrete inputs operating at 24 V DC, offering a voltage range of 20.4 to 28.8 V, and supports both sink and source logic.
This Schneider Electric TM2DDI8DT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805582644.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | I/O expansion module |
| Discrete input number | 8 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Range compatibility | Twido | Advantys OTB |
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink or source |
| Discrete input current | 7 mA |
| Input impedance | 3.4 kOhm |
| Number of common point | 1 |
| Response time | 4 ms at state 0 | 4 ms at state 1 |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 25 mA at 5 V DC at state 1 for all input |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.1 kg |
| Depth | 84.6 mm |
| Height | 90 mm |
| Width | 23.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.6 cm |
| Package 1 Width | 10.6 cm |
| Package 1 Length | 12.8 cm |
| Package 1 Weight | 182.0 g |
