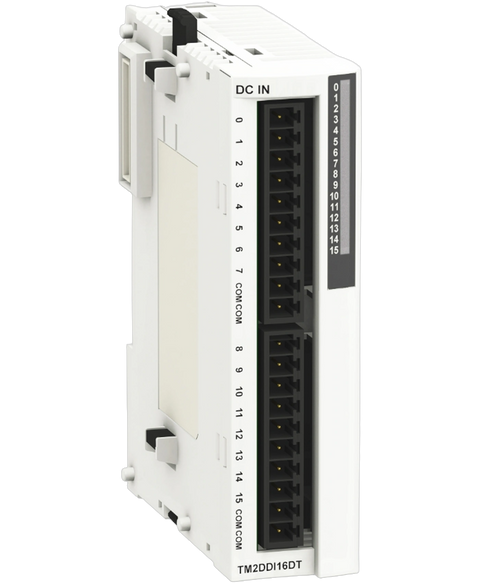

Schneider Electric TM2DDI16DT
Schneider Electric's TM2DDI16DT is an I,O expansion module designed for increasing input capability in Modicon applications. It supports 16 discrete inputs and operates at an input voltage of 24V DC, making it suitable for various automation tasks.
This Schneider Electric TM2DDI16DT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805679018.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | I/O expansion module |
| Discrete input number | 16 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Range compatibility | Twido | Advantys OTB |
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink or source |
| Discrete input current | 7 mA |
| Input impedance | 3.4 kOhm |
| Number of common point | 1 |
| Response time | 4 ms at state 0 | 4 ms at state 1 |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 40 mA at 5 V DC at state 1 for all input |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.065 kg |
| Depth | 84.6 mm |
| Height | 90 mm |
| Width | 23.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.4 cm |
| Package 1 Width | 10.6 cm |
| Package 1 Length | 12.8 cm |
| Package 1 Weight | 196.0 g |
