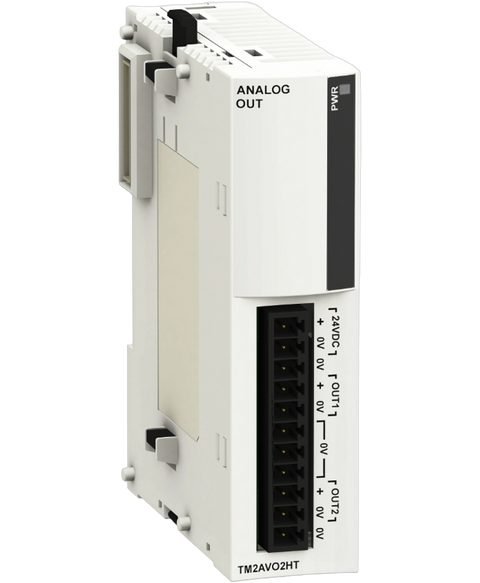

Schneider Electric TM2AVO2HT
Discontinued by manufacturer 06.28.2019, analog output module, 2 voltage outputs, 24VDC, 1 removable screw terminal block, output type: +,- 10v, 11 bits + sign output resolution, compatible with advantys otb and twido range
This Schneider Electric TM2AVO2HT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805586086.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | Analog output module |
| Analogue output number | 2 |
| Analogue output type | Voltage: +/- 10 V |
| Range compatibility | Advantys OTB | Twido |
| Analogue output resolution | 11 bits + sign |
| LSB value | +/- 9.8 mV voltage |
| load type | Resistive |
| Load impedance ohmic | <= 3000 Ohm voltage |
| Stabilisation time | 2 ms |
| Conversion time | 2 ms + 1 controller cycle time |
| Measurement error | +/- 0.5 % of full scale at 25 °C |
| Temperature coefficient | +/-0.01 %FS/°C |
| Repeat accuracy | +/-0.1 %FS |
| Non-linearity | +/- 0.2 %FS |
| Output ripple | <= 1 LSB |
| Total error | +/-1 %FS |
| Type of cable | Twisted shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| Electrical connection | 1 removable screw terminal block |
| Current consumption | 60 mA at 5 V DC internal | 60 mA at 24 V DC external |
| Net weight | 0.085 kg |
| Dielectric strength | 2500 V between the I/O and internal logic |
| Width | 23.5 mm |
| Depth | 70 mm |
| Height | 90 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 10.5 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 145.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.125 kg |
