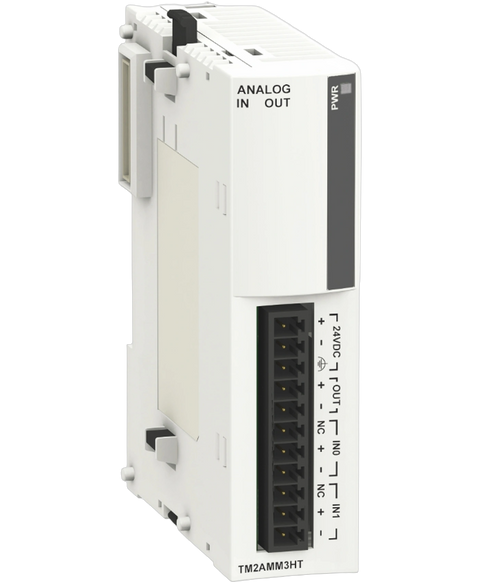

Schneider Electric TM2AMM3HT
The TM2AMM3HT from Schneider Electric serves as an input,output module, essential for interfacing with various analog signals. It features two analog inputs and a single analog output, making it versatile for multiple control tasks.
This Schneider Electric TM2AMM3HT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801433451.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | Input/output analog module |
| Analogue input number | 2 |
| Input level | High level |
| Analogue input type | current 4...20 mA non differential | voltage 0...10 V non differential |
| Analogue output number | 1 |
| Analogue output type | Current: 4...20 mA | Voltage: 0...10 V |
| Cross talk | <= 2 LSB |
| Range compatibility | Twido | Advantys OTB |
| Analogue input resolution | 12 bits |
| Analogue output resolution | 12 bits |
| LSB value | 2.5 mV voltage voltage | 4.8 µA current current |
| Permissible continuous overload | 40 mA, analogue input type: current | 13 V, analogue input type: voltage |
| Input impedance | >= 10 Ohm current | >= 1 MOhm voltage |
| load type | Resistive |
| Load impedance ohmic | >= 2000 Ohm voltage | <= 300 Ohm current |
| Stabilisation time | 20 ms |
| Conversion time | 20 ms + 1 controller cycle time |
| Sampling duration | 10 ms |
| Acquisition period | 60 ms per channel + 1 controller cycle time |
| Measurement error | +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C | +/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C |
| Temperature coefficient | +/-0.006 %FS/°C, analogue input type: 0...10 V | +/-0.006 %FS/°C, analogue input type: 4...20 mA | +/-0.015 %FS/°C, analogue input type: 0...10 V, analogue output type: 0...10 V | +/-0.015 %FS/°C, analogue input type: 4...20 mA, analogue output type: 4...20 mA |
| Repeat accuracy | +/-0.5 %FS for input/output |
| Non-linearity | +/- 0.2 %FS, analogue input type: current, analogue output type: current | +/- 0.2 %FS, analogue input type: voltage, analogue output type: voltage |
| Output error | +/- 1 %FS |
| Output ripple | <= 1 LSB |
| Total error | +/-1 %FS, analogue input type: current, analogue output type: current | +/-1 %FS, analogue input type: voltage, analogue output type: voltage |
| Type of cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| Electrical connection | 1 removable screw terminal block |
| Current consumption | 50 mA at 24 V DC external | 50 mA at 5 V DC internal |
| Net weight | 0.085 kg |
| Dielectric strength | 500 V between I/O channel | 500 V between the I/O and the external supply circuit | 500 V between the I/O and internal logic |
| Width | 23.5 mm |
| Depth | 70 mm |
| Height | 90 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 10.5 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 199.0 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 1.301 kg |
