Schneider Electric TM2AMI8HT

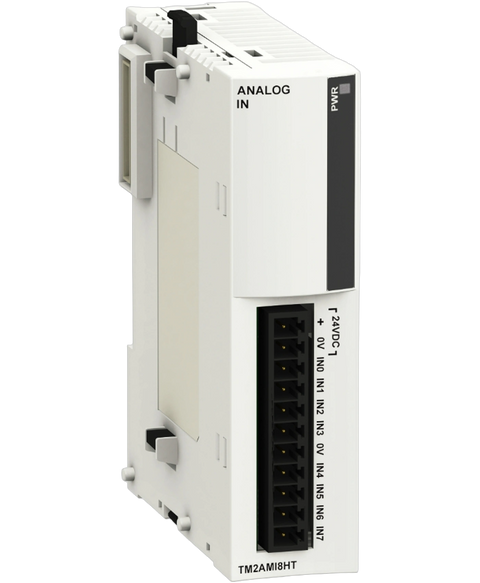

The Schneider Electric TM2AMI8HT is an I,O expansion module that expands the capabilities of Modicon systems. It features eight analog inputs with a current range from 4 to 20 mA, delivering a resolution of 10 bits and allowing for granular data collection.
This Schneider Electric TM2AMI8HT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805556971.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | I/O expansion module |
| Analogue input number | 8 |
| Analogue input type | current 4...20 mA non differential | voltage 0...10 V non differential |
| Cross talk | <= 1 LSB |
| Range compatibility | Twido | Advantys OTB |
| Analogue input resolution | 10 bits |
| LSB value | 19.5 µA current | 9.7 mV voltage |
| Permissible continuous overload | 40 mA, analogue input type: current | 13 V, analogue input type: voltage |
| Input impedance | >= 10 kOhm voltage | 470 Ohm current |
| Sampling duration | 160 ms |
| Acquisition period | 160 ms per channel + 1 controller cycle time |
| Measurement error | +/- 0.2 % of full scale at 25 °C |
| Temperature coefficient | +/-0.01 %FS/°C |
| Repeat accuracy | +/- 0.4 %FS |
| Non-linearity | +/- 0.002 %FS |
| Total error | +/-1 %FS |
| Type of cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Electrical connection | 1 removable screw terminal block power supply | 1 removable screw terminal block sensors |
| Current consumption | 45 mA at 24 V DC external | 60 mA at 5 V DC internal |
| Net weight | 0.085 kg |
| Dielectric strength | 2500 V between the I/O and internal logic |
| Width | 23.5 mm |
| Depth | 70 mm |
| Height | 90 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 10.5 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 144.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.107 kg |
