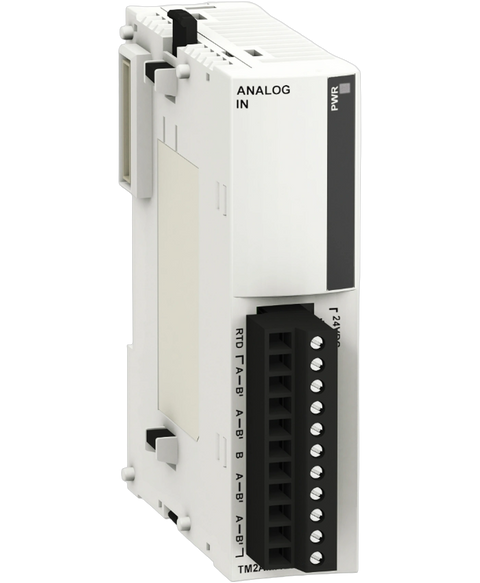

Schneider Electric TM2AMI4LT
The TM2AMI4LT is an analog input module part of the Schneider Electric Modicon series. Featuring a communication interface with the M238 Logic Controller, this module supports a range of input types including voltage, current, and temperature measurements.
This Schneider Electric TM2AMI4LT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805520911.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | I/O expansion module |
| Analogue input number | 4 |
| Analogue input type | voltage 0...10 V non differential | Pt 100/Pt 1000 temperature probe - 200...600 °C non differential | Ni 100/Ni 1000 temperature probe - 50...150 °C non differential | current 0...20 mA non differential |
| Cross talk | <= 1 LSB |
| Range compatibility | Twido | Advantys OTB |
| Analogue input resolution | 12 bits |
| LSB value | 2.5 mV voltage voltage | 4.8 µA current current | 0.2 °C temperature probe Pt 100/Pt 1000 | 0.05 °C temperature probe Ni 100/Ni 1000 |
| Permissible continuous overload | 40 mA, analogue input type: current | 13 V, analogue input type: voltage |
| Input impedance | >= 10 kOhm temperature probe | 470 Ohm current | 10 kOhm voltage |
| Sampling duration | 160 ms |
| Acquisition period | 320 ms per channel + 1 controller cycle time temperature probe | 160 ms per channel + 1 controller cycle time voltage/current |
| Measurement error | +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C | +/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C | +/- 0.4 % of full scale Pt 100/Pt 1000, Ni 100/ Ni 1000 at 25 °C |
| Temperature coefficient | +/- 0.004 %FS/°C, analogue input type: temperature probe | +/- 0.009 %FS/°C, analogue input type: current | +/- 0.009 %FS/°C, analogue input type: voltage |
| Repeat accuracy | +/-0.1 %FS |
| Non-linearity | +/- 0.02 %FS |
| Total error | +/-0.5 %FS |
| Type of cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Electrical connection | 1 removable screw terminal block |
| Current consumption | 50 mA at 5 V DC internal | 60 mA at 24 V DC external |
| Net weight | 0.085 kg |
| Dielectric strength | 2500 V between the I/O and internal logic |
| Width | 23.5 mm |
| Depth | 70 mm |
| Height | 90 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.17 cm |
| Package 1 Width | 10.138 cm |
| Package 1 Length | 12.186 cm |
| Package 1 Weight | 146.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.07 kg |
