Schneider Electric TM2AMI2HT

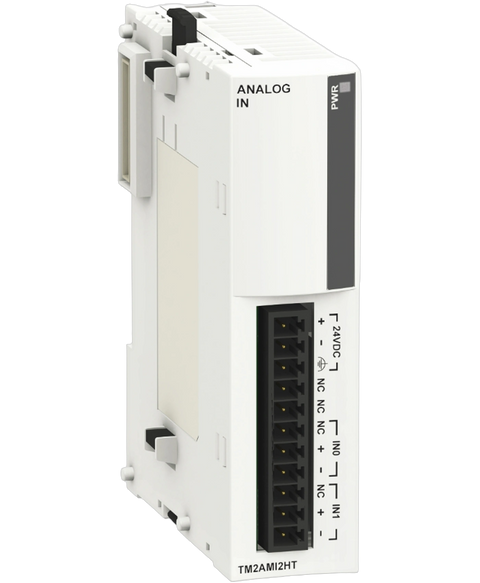

The TM2AMI2HT is an analog input module designed for use with the Modicon M238 logic controller. It accommodates two non-differential inputs with high input levels, facilitating clean signal processing.
This Schneider Electric TM2AMI2HT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805541717.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | I/O expansion module |
| Analogue input number | 2 |
| Input level | High level |
| Analogue input type | current 4...20 mA non differential | voltage 0...10 V non differential |
| Cross talk | <= 2 LSB |
| Range compatibility | Twido | Advantys OTB |
| Analogue input resolution | 12 bits |
| LSB value | 2.5 mV voltage voltage | 4.8 µA current current |
| Permissible continuous overload | 40 mA, analogue input type: current | 13 V, analogue input type: voltage |
| Input impedance | >= 1 MOhm voltage | 10 Ohm current |
| Sampling duration | 10 ms |
| Acquisition period | 10 ms per channel + 1 controller cycle time |
| Measurement error | +/- 0.2 % of full scale at 25 °C |
| Temperature coefficient | +/-0.006 %FS/°C |
| Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.2 %FS |
| Total error | +/-1 %FS |
| Type of cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Electrical connection | 1 removable screw terminal block |
| Current consumption | 50 mA at 5 V DC internal | 40 mA at 24 V DC external |
| Net weight | 0.085 kg |
| Dielectric strength | 500 V between the I/O and the external supply circuit | 500 V between the I/O and internal logic |
| Width | 23.5 mm |
| Depth | 70 mm |
| Height | 90 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 10.5 cm |
| Package 1 Length | 13.0 cm |
| Package 1 Weight | 197.0 g |
