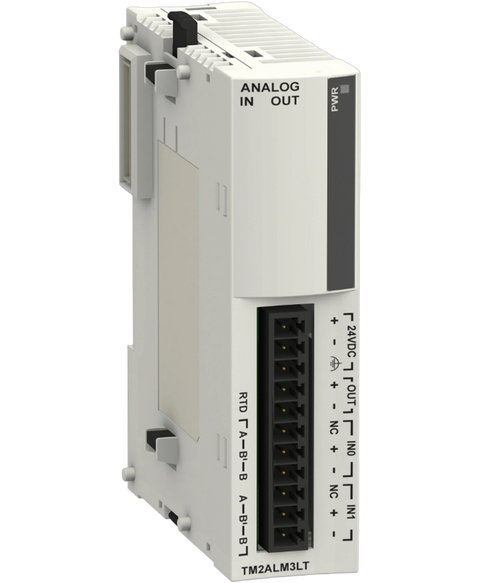

Schneider Electric TM2ALM3LT
Analog input,output module M238 - 2 inputs thermocouple,temp low level- 1 output
This Schneider Electric TM2ALM3LT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805523208.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$379.89
(inc. GST)
In Stock
| Range of product | Modicon M238 logic controller |
| Product or component type | Input/output analog module |
| Analogue input number | 2 |
| Input level | Low level |
| Analogue input type | 3-wire Pt probe temperature probe - 100...500 °C differential | thermocouple 0...1200 °C with thermocouple J differential | thermocouple 0...1300 °C with thermocouple K differential | thermocouple 0...400 °C with thermocouple T differential |
| Analogue output number | 1 |
| Analogue output type | Current: 4...20 mA | Voltage: 0...10 V |
| Cross talk | <= 2 LSB |
| Range compatibility | Advantys OTB | Twido |
| Analogue input resolution | 12 bits |
| Analogue output resolution | 12 bits |
| LSB value | 2.5 mV voltage voltage | 4.8 µA current current | 0.1 °C thermocouple | 0.15 °C temperature probe |
| Input impedance | >= 1 MOhm |
| load type | Resistive |
| Load impedance ohmic | >= 2000 Ohm voltage | <= 300 Ohm current |
| Stabilisation time | 20 ms |
| Conversion time | 20 ms + 1 controller cycle time |
| Sampling duration | 20 ms, analogue input type: temperature probe | 60 ms, analogue input type: thermocouple |
| Acquisition period | 60 ms per channel + 1 controller cycle time thermocouple | 80 ms per channel + 1 controller cycle time |
| Measurement error | +/- 0.2 % of full scale - 100...500 °C 3-wire Pt probe at 25 °C | +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C | +/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C | 0.2 % of full scale +/- 4 °C 0...1200 °C thermocouple J at 25 °C | 0.2 % of full scale +/- 4 °C 0...1300 °C thermocouple K at 25 °C | 0.2 % of full scale +/- 4 °C 0...400 °C thermocouple T at 25 °C |
| Temperature coefficient | +/-0.006 %FS/°C, analogue input type: - 100...500 °C 3-wire Pt probe | +/-0.006 %FS/°C, analogue input type: 0...1200 °C thermocouple J | +/-0.006 %FS/°C, analogue input type: 0...1300 °C thermocouple K | +/-0.006 %FS/°C, analogue input type: 0...400 °C thermocouple T | +/-0.015 %FS/°C, analogue input type: 0...10 V, analogue output type: 0...10 V | +/-0.015 %FS/°C, analogue input type: 4...20 mA, analogue output type: 4...20 mA |
| Repeat accuracy | +/-0.5 %FS for input/output |
| Non-linearity | +/- 0.2 %FS, analogue input type: current, analogue output type: current | +/- 0.2 %FS, analogue input type: temperature probe | +/- 0.2 %FS, analogue input type: thermocouple | +/- 0.2 %FS, analogue input type: voltage, analogue output type: voltage |
| Output error | +/- 1 %FS |
| Output ripple | <= 1 LSB |
| Total error | +/-1 %FS, analogue input type: current, analogue output type: current | +/-1 %FS, analogue input type: temperature probe | +/-1 %FS, analogue input type: thermocouple | +/-1 %FS, analogue input type: voltage, analogue output type: voltage |
| Type of cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| Electrical connection | 1 removable screw terminal block |
| Current consumption | 50 mA at 24 V DC external | 50 mA at 5 V DC internal |
| Net weight | 0.085 kg |
| Dielectric strength | 500 V between I/O channel | 500 V between the I/O and the external supply circuit | 500 V between the I/O and internal logic |
| Width | 23.5 mm |
| Depth | 70 mm |
| Height | 90 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 10.5 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 197.0 g |
