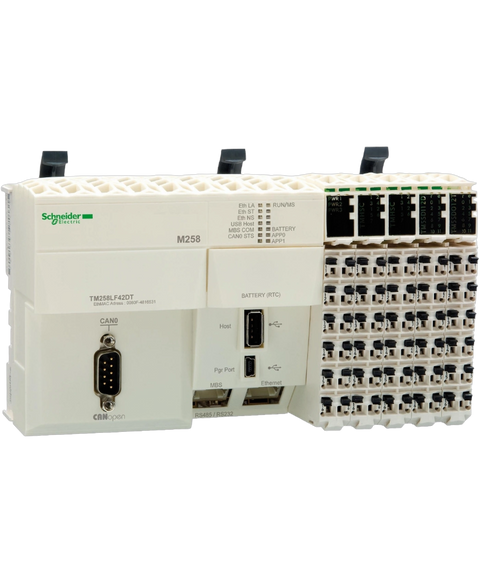

Schneider Electric TM258LF42DT
The TM258LF42DT logic controller from Schneider Electric offers robust capabilities with a total of 26 discrete inputs. It accommodates both fast and regular processing to support complex automation tasks efficiently.
This Schneider Electric TM258LF42DT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26801725082.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$952.59
(inc. GST)
In Stock
| Range of product | Modicon M258 |
| Product or component type | Logic controller |
| Product specific application | - |
| Discrete I/O number | 42 |
| Discrete output number | 12 output | 4 fast output |
| Discrete input number | 10 for fast input | 12 for input | 4 for regular input |
| Discrete input logic | Sink for fast input | Sink for regular input | Source for input |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Voltage state 1 guaranteed | >= 15 V for fast input | >= 15 V for fast output | >= 15 V for regular input |
| Voltage state 0 guaranteed | <= 5 V for fast input | <= 5 V for fast output | <= 5 V for regular input |
| Discrete input current | 4 mA for fast input | 4 mA for regular input |
| Input impedance | 6 kOhm for fast input | 6 kOhm for regular input |
| Configurable filtering time | 0 ms for fast input/regular input and fast output | 1.5 ms for fast input/regular input and fast output | 12 ms for fast input/regular input and fast output | 4 ms for fast input/regular input and fast output |
| Anti bounce filtering | 2 µs...4 ms configurable fast input/regular input and fast output |
| Maximum cable distance between devices | <30 m for fast input | <30 m for fast output | <30 m for regular input |
| Isolation between channels and internal logic | 500 Vrms AC |
| Isolation between channels | None |
| Discrete output logic | Source |
| Discrete output voltage | 24 V DC |
| Output voltage limits | 19.2...28.8 V |
| Discrete output current | 4 mA for fast output |
| [Us] rated supply voltage | 24 V DC for embedded expert modules power | 24 V DC for I/O power segment | 24 V DC for main supply |
| Supply voltage limits | 20.4…28.8 V |
| [In] rated current | 0.04 A for embedded expert modules power | 10 A for I/O power segment | 0.26 A for main supply |
| Peak current | 100 kA (duration = <= 70 s) for main supply | 25 kA (duration = <= 500 s) for I/O power segment | 50 kA (duration = <= 150 s) for embedded expert modules power | 1.2 A (duration = > 70 s) for main supply |
| Power consumption in W | 13.03 W |
| Memory description | Flash 128 MB | Internal RAM 64 MB |
| Realtime clock | Without any user calibration clock, clock drift < 30 s/month at 25 °C | With user calibration clock, clock drift <= 6 s/month |
| Data backed up | Variables of type retain and retain persistent CR2477M Renata, 1.5 years autonomy |
| Integrated connection type | 1 isolated serial link with female RJ45 connectorModbus with master/slave RTU/ASCII or character mode ASCII, physical interface: RS232/RS485, transmission rate: 300...115200 bps | 1 isolated serial link with female RJ45 connectorEthernet Modbus TCP/IP with slave, physical interface: 10BASE-T/100BASE-TX | 1 isolated serial link with mini B USB connector, transmission rate: 480 Mbit/s | 1 isolated serial link with USB type A connector, transmission rate: 480 Mbit/s | 1 CANopen with male SUB-D 9 connectorCANopen with master |
| Transmission rate | 125 kbit/s for bus length of 500 m for CANopen | 250 kbit/s for bus length of 250 m for CANopen | 50 kbit/s for bus length of 1000 m for CANopen | 500 kbit/s for bus length of 100 m for CANopen | 10 kbit/s for bus length of 5000 m for CANopen | 1000 kbit/s for bus length of 4 m for CANopen | 20 kbit/s for bus length of 2500 m for CANopen | 800 kbit/s for bus length of 25 m for CANopen |
| Counting input number | 8 counting input(s) at 200 kHz |
| Local signalling | 1 LED per channel for I/O state | 1 LED for CAN0 STS | 1 LED for MBS COM | 1 LED green/red for APP0 | 1 LED green/red for APP1 | 1 LED green/red for Eth NS (Ethernet network status) | 1 LED green/red for Eth ST (Ethernet status) | 1 LED green/red for RUN/MS (module status) | 1 LED green/red for USB host | 1 LED green/yellow for Eth LA (Ethernet activity) | 1 LED red for BATT (battery status) |
| Marking | CE |
| Mounting support | Symmetrical DIN rail |
| Width | 175 mm |
| Height | 99 mm |
| Depth | 85 mm |
| Net weight | 0.55 kg |
| Standards | UL 508 | CSA C22.2 No 142 | IEC 61131-2 | CSA C22.2 No 213 |
| Product certifications | GOST-R | cULus | C-Tick | CSA |
| Ambient air temperature for operation | 0…55 °C without derating (horizontal installation) | 0…60 °C with derating factor (horizontal installation) | 0…50 °C (vertical installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20 conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 1 gn at 8.4…150 Hz on DIN rail | 3.5 mm at 5…8.4 Hz on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Resistance to electrostatic discharge | 4 kV on contact conforming to IEC 61000-4-2 | 8 kV in air conforming to IEC 61000-4-2 |
| Resistance to electromagnetic fields | 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3 | 10 V/m 80...2000 MHz conforming to IEC 61000-4-3 |
| Resistance to fast transients | 1 kV (I/O) conforming to IEC 61000-4-4 | 1 kV (shielded cable) conforming to IEC 61000-4-4 | 2 kV (power lines) conforming to IEC 61000-4-4 |
| Surge withstand | 0.5 kV differential mode conforming to IEC 61000-4-5 | 1 kV common mode conforming to IEC 61000-4-5 |
| Disturbance radiated/conducted | CISPR 11 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.400 cm |
| Package 1 Width | 16.000 cm |
| Package 1 Length | 31.500 cm |
| Package 1 Weight | 781.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 5.646 kg |
