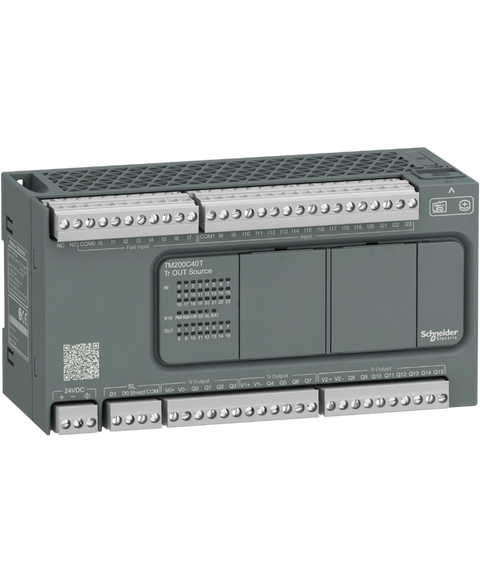

Schneider Electric TM200C40T
controller M200 40 IO transistor Source
This Schneider Electric TM200C40T is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26805530707.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$394.07
(inc. GST)
In Stock
| Range of product | Easy Modicon M200 |
| Product or component type | Logic controller |
| [Us] rated supply voltage | 24 V DC |
| Discrete I/O number | 40 |
| Discrete input number | I2...I5: 4 fast input | I0, I1, I6, I7: 4 high speed input | I8...I23: 16 regular input |
| Discrete output number | Q0...Q1: 2 fast output (PLS/PWM/PTO mode) | Q2...Q15: 14 transistor output |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete input current | 7 mA for input |
| Discrete input logic | Sink or source (positive/negative) type 1 conforming to IEC 61131-2 |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.5 A |
| Discrete output type | Transistor |
| Discrete output logic | Positive logic (source) |
| Power consumption in W | 18 W at 24 V DC (with max I/O) |
| Maximum number of I/O expansion module | 4 with 64 discrete output(s) for relay output | 4 with 144 discrete output(s) for transistor output |
| Supply voltage limits | 20.4…28.8 V |
| Inrush current | 35 A |
| Voltage state 1 guaranteed | >= 15 V for input |
| Voltage state 0 guaranteed | <= 5 V for input |
| Input impedance | 3.3 kOhm for discrete input |
| Response time | 35 µs turn-on, I2...I5 terminal(s) for input | 100 µs turn-off, I2...I5 terminal(s) for input | 5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input | 5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input | 35 µs turn-on, I8...I13 terminal(s) for input | 100 µs turn-off, I8...I13 terminal(s) for input | 55 µs turn-on, I14...I23 terminal(s) for input | 125 µs turn-off, I14...I23 terminal(s) for input | 1 ms turn-on, Q0...Q15 terminal(s) for output | 1 ms turn-off, Q0...Q15 terminal(s) for output |
| Configurable filtering time | 0 ms for input | 3 ms for input | 12 ms for input |
| Maximum current per output common | 2 A at COM 0 | 2 A at COM 1 | 4 A at COM 2 |
| Output frequency | 100 kHz for fast output (PWM/PLS mode) at Q0...Q1 |
| Maximum leakage current | 0.1 mA for transistor output |
| Maximum voltage drop | <1 V |
| Maximum tungsten load | <12 W for output and fast output |
| Protection type | Overload and short-circuit protection at 2 A |
| Reset time | 1 s automatic reset |
| Memory capacity | 512 byte internal flash for backup of programs |
| Data storage equipment | 32 GB micro SD card (optional) |
| Battery type | BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s) |
| Backup time | 3 years at 25 °C (by interruption of power supply) |
| Execution time for 1 KInstruction | 0.3 ms for event and periodic task |
| Execution time per instruction | 0.2 µs Boolean |
| Exct time for event task | 60 µs response time |
| Clock drift | <= 90 s/month at 25 °C |
| Regulation loop | Adjustable PID regulator up to 14 simultaneous loops |
| Positioning functions | PWM/PLS 2 channel(s) at 100 kHz |
| Control signal type | Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode) | Pulse/direction at 100 kHz for fast input (HSC mode) | Single phase at 100 kHz for fast input (HSC mode) | CW/CCW at 100 kHz for fast input (HSC mode) |
| Counting input number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| Integrated connection type | USB port with mini B USB 2.0 connector | Non isolated serial link serial 1 with terminal block connector and RS485 interface | Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface | Isolated serial link serial 2 with terminal block connector and RS485 interface |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 | 12 Mbit/s for USB |
| Communication port protocol | USB port: USB - SoMachine-Network | Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Local signalling | 1 LED (green) for PWR | 1 LED (green) for RUN | 1 LED (red) for module error (ERR) | 1 LED (green) for SD card access (SD) | 1 LED (red) for BAT | 1 LED (green) for SL1 | 1 LED per channel (green) for I/O state |
| Electrical connection | Mini B USB 2.0 connectorfor a programming terminal | removable screw terminal blockfor inputs | removable screw terminal blockfor outputs | removable screw terminal block, 3 terminal(s) for connecting the 24 V DC power supply | removable screw terminal block, 4 terminal(s) for connecting the serial link1 |
| Maximum cable distance between devices | Unshielded cable: <50 m for input | Shielded cable: <10 m for fast input | Shielded cable: <10 m for high speed input | Unshielded cable: <150 m for output |
| Insulation | Non-insulated between inputs | Between input and internal logic at 500 V AC | Between fast input and internal logic at 500 V AC | Between input groups at 500 V AC | Between output and internal logic at 500 V AC | Between output groups at 500 V AC | Between supply and internal logic at 500 V DC |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715 |
| Height | 90 mm |
| Depth | 70 mm |
| Width | 175 mm |
| Net weight | 0.522 kg |
| IP degree of protection | IP20 with protective cover in place |
| Product certifications | CE |
| Standards | IEC 61131-2 | IEC 61010-2-201 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 | Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 | Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 | Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8 | Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4 | 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5 | 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5 | 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5 | 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5 | 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5 | 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5 | 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5 | Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 | Conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011 | Conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011 | Radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011 | Radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011 |
| Shock resistance | 15 gn for 11 ms | 30 gn for 6 ms |
| Immunity to microbreaks | 2 ms |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on symmetrical rail | 1 gn at 8.4…150 Hz on symmetrical rail | 3.5 mm at 5…8.7 Hz on panel mounting | 2 gn at 8.7…150 Hz on panel mounting |
| Relative humidity | 10…95 %, without condensation (in operation) | 10…95 %, without condensation (in storage) |
| Ambient air temperature for operation | 0…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Pollution degree | <= 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9 cm |
| Package 1 Width | 18.3 cm |
| Package 1 Length | 13.6 cm |
| Package 1 Weight | 765.5 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 9686 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 95 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 241464 g |
