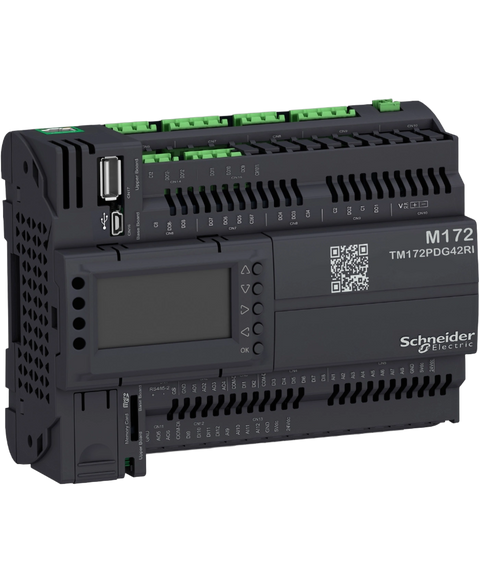

Schneider Electric TM172PDG42RI
Controller, Modicon M171,M172,M173, performance, display, 42 IO, Etherne, isolated
This Schneider Electric TM172PDG42RI is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26805669472.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$754.13
(inc. GST)
In Stock
| Range of product | Modicon M171/M172 |
| Product or component type | Programmable controllers |
| Product specific application | HVAC control |
| Variant | Programmable |
| Total inputs/outputs | 42 |
| Discrete input number | 12 |
| Discrete output number | 2 for relay outputs SPDT with independent common | 3 for relay outputs SPST with same common | 5 for relay outputs SPST with same common | 2 for relay outputs SPST with independent common |
| Discrete output current | 3 A for relay SPDT | 3 A for relay SPST |
| Analogue input number | 12 configurable by pair |
| Analogue output number | 4 voltage, range: 0...10 V | 2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz) |
| Number of port | 1 CAN port - screw terminal block | 1 USB type A - USB type A female | 1 USB type mini B - USB device port Mini-B | 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP) | 1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver) |
| Input/output number | 12 analog input(s) | 6 analog output(s) | 12 digital input(s) | 12 digital output(s) |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V AC/DC |
| Discrete input current | 2.5 mA |
| Input impedance | 10 kOhm |
| Analogue input type | impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm | impedance 0...300 daOhm - resolution: 1 daOhm at 2 kOhm | NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm | voltage 0...10 V - resolution: 1 digit at > 10 kOhm | NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (extended) | current 0...20 mA/4...20 mA - resolution: 1 digit at < 150 Ohm | PTC temperature probe - 55...150 °C - resolution: 0.1 °C at 2 kOhm | voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric) | Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 2 kOhm | direct input at > 10 kOhm |
| Measurement accuracy | NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C | NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C | NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C | PTC - 55...155 °C +/- 1.1 °C | Pt 1000 - 200...-100 °C +/- 10 °C | Pt 1000 - 100...-50 °C +/- 2.5 °C | Pt 1000 - 50...100 °C +/- 1.5 °C | Pt 1000 100…400 °C +/- 2.4 °C | Pt 1000 400...850 °C +/- 10 °C | 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit | 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit | 4...20 mA +/- 1 % of full scale +/- 1 digit | 0...10 V +/- 1 % of full scale +/- 1 digit | 0...5 V +/- 1 % of full scale +/- 1 digit | HOhm 0...1500 hOhm +/- 8.5 hOhm | DaOhm 0...300 daOhm +/- 2.5 daOhm |
| Sensor power supply | 5 V DC at 50 mA supplied by the controller | 24 V DC at 150 mA supplied by the controller |
| [Us] rated supply voltage | 24 V +/- 10 % AC | 20...38 V DC |
| Power consumption in W | 14 W at 24 V AC/DC |
| Realtime clock | Built-in clock, clock drift <= 30 s/month at -20…65 °C |
| Display type | Backlit LCD - 128 x 64 pixels |
| Overvoltage category | II |
| Local signalling | 1 LED (red) for programmable | 1 LED (yellow) for programmable | 1 LED (green) for programmable | 1 LED (green) for power |
| Mounting support | Panel mounting with accessory | DIN rail |
| Width | 144 mm |
| Height | 110 mm |
| Depth | 60.5 mm |
| Net weight | 0.385 kg |
| Directives | 2014/30/EU - electromagnetic compatibility | 2014/35/EU - low voltage directive |
| Standards | CAN/CSA-E60730-1 | CSA E60730-2-9 | EN 60068-2-27 | EN 60068-2-6 Fc | EN 60730-1 | EN 60730-2-9 | UL 60730-1 | UL 60730-2-9 | IEC 61000-4-2 | IEC 61000-4-3 | IEC 61000-4-4 | IEC 61000-4-5 | IEC 61000-4-6 | IEC 61000-4-11 | UL94 (material V0) |
| Product certifications | EAC | CE | cURus | CSA | RCM |
| Ambient air temperature for operation | -20…65 °C conforming to UL 60730-1 | -20…60 °C horizontal conforming to UL 60730-1 |
| Ambient air temperature for storage | -30…70 °C |
| Relative humidity | 5…95 % non-condensing |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.200 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 18.700 cm |
| Package 1 Weight | 444.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.881 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 57.360 kg |
