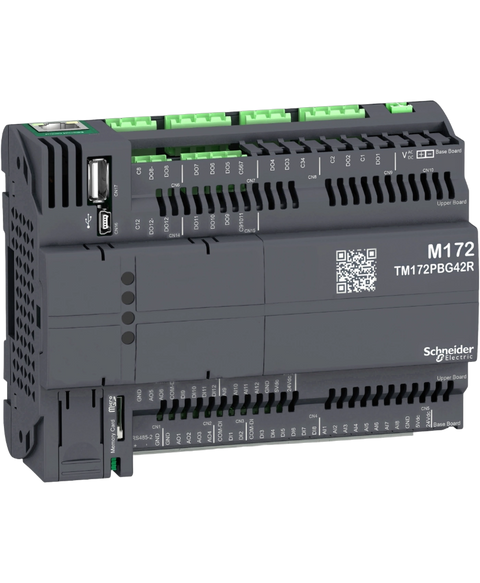

Schneider Electric TM172PBG42R
Discontinued by manufacturer, PLC, m172 performance blind 42 i,os, ethernet, Modbus
This Schneider Electric TM172PBG42R is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26801716601.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M171/M172 |
| Product or component type | Programmable controllers |
| Product specific application | HVAC and pumping solution |
| Variant | Programmable |
| Total inputs/outputs | 42 |
| Discrete input number | 12 |
| Discrete output number | 5 for relay outputs SPST with same common | 2 for relay outputs SPST with independent common | 2 for relay outputs SPDT with same common | 3 for relay outputs SPST with independent common |
| Discrete output current | 1 A for relay SPDT | 3 A for relay SPST |
| Analogue input number | 12 configurable by pair |
| Analogue output number | 4 voltage, range: 0...10 V | 2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz) |
| Number of port | 1 CAN port - screw terminal block | 1 USB type A - USB type A female | 1 USB type mini B - USB device port Mini-B | 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP) | 1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver) |
| Input/output number | 12 analog input(s) | 6 analog output(s) | 12 digital input(s) | 12 digital output(s) |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V AC/DC |
| Discrete input current | 2.5 mA |
| Input impedance | 10 kOhm |
| Analogue input type | impedance 0...1500 hOhm | impedance 0...300 daOhm | direct input | NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended) | voltage 0...10 V | NTC temperature probe - 40...150 °C - resolution: 0.1 °C | current 0...20 mA/4...20 mA | PTC temperature probe - 55...150 °C - resolution: 0.1 °C | voltage 0...5 V (absolute or ratiometric) | Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C |
| Sensor power supply | 5 V DC at 50 mA supplied by the controller | 24 V DC at 150 mA supplied by the controller |
| [Us] rated supply voltage | 24 V +/- 10 % AC | 20...38 V DC |
| Power consumption in W | 15 W at 24 V AC/DC |
| Realtime clock | Built-in clock at -20…60 °C |
| Display type | Without display |
| Overvoltage category | II |
| Local signalling | 1 LED (red) for programmable | 1 LED (yellow) for programmable | 1 LED (green) for programmable | 1 LED (green) for power |
| Mounting support | Panel mounting with accessory | DIN rail |
| Width | 144 mm |
| Height | 110 mm |
| Depth | 60.5 mm |
| Net weight | 0.385 kg |
| Directives | 2006/95/EC - low voltage directive | 86/188/EEC - physical agents (noise) directive |
| Standards | EN/IEC 60730 | UL94 (material V0) |
| Product certifications | EAC | cURus | CE | CSA |
| Ambient air temperature for operation | -20…60 °C conforming to UL 60730-1 | -20…65 °C with derating conforming to UL 60730-1 |
| Ambient air temperature for storage | -30…70 °C |
| Relative humidity | 5…95 % non-condensing |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.000 cm |
| Package 1 Width | 9.100 cm |
| Package 1 Length | 18.500 cm |
| Package 1 Weight | 419.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.740 kg |
