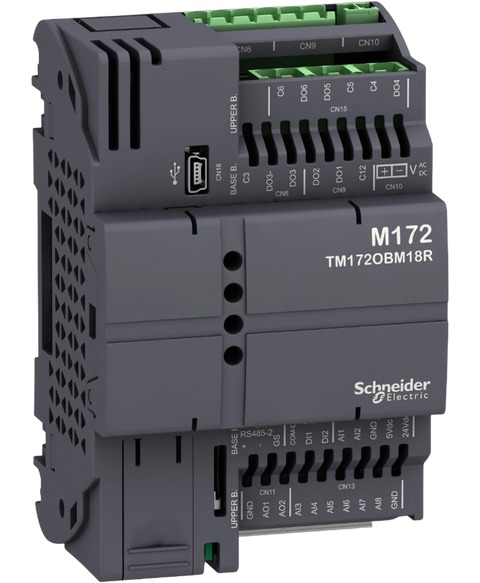

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric TM172OBM18R
M172o controller opt, blind, 18 i,os, 2 mb
This Schneider Electric TM172OBM18R is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26805578732.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$432.34
(inc. GST)
In Stock
| Range of product | Modicon M171/M172 |
| Product or component type | Programmable controllers |
| Product specific application | HVAC |
| Variant | Programmable |
| Total inputs/outputs | 18 |
| Discrete input number | 2 |
| Discrete output number | 1 for relay outputs SPDT with independent common | 2 for relay outputs SPST with same common | 3 for relay outputs SPST with independent common |
| Discrete output current | 3 A for relay SPST | 3 A for relay SPDT |
| Analogue input number | 8 configurable by pair |
| Analogue output number | 2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz) |
| Number of port | 1 CAN port - screw terminal block | 1 USB type mini B - USB device port Mini-B | 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP) |
| Input/output number | 2 analog output(s) | 6 digital output(s) | 8 analog input(s) | 2 digital input(s) |
| Discrete input logic | Sink or source (positive/negative) up to 2 kHz |
| Discrete input voltage | 24 V AC/DC |
| Discrete input current | 5 mA AC/DC |
| Input impedance | 10 kOhm |
| Analogue input type | NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C) | NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C) | voltage 0...10 V - resolution: 1 digit at > 10 kOhm | voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric) | impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm | impedance 0...300 daOhm - resolution: 1 daOhm at 1500 Ohm | PTC temperature probe - 55...150 °C - resolution: 0.1 °C at 1500 Ohm | Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 1500 Ohm | current 0...20 mA/4...20 mA - resolution: 1 digit at < 150 Ohm | direct input at 10 kOhm (Dry contact) |
| Measurement accuracy | 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit | 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit | 4...20 mA +/- 1 % of full scale +/- 1 digit | 0...10 V +/- 1 % of full scale +/- 1 digit | 0...5 V +/- 1 % of full scale +/- 1 digit | DaOhm 0...300 daOhm +/- 2.5 daOhm | NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C | NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C | NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C | PTC - 55...155 °C +/- 1.1 °C | Pt 1000 - 200...-100 °C +/- 10 °C | Pt 1000 - 100...-50 °C +/- 2.5 °C | Pt 1000 - 50...100 °C +/- 1.5 °C | Pt 1000 100…400 °C +/- 2.4 °C | Pt 1000 400...850 °C +/- 10 °C | HOhm 0...750 hOhm +/- 8.5 hOhm | HOhm 750 hOhm...1500 hOhm +/- 24 hOhm |
| Sensor power supply | 5 V DC at 40 mA supplied by the controller | 24 V DC at 100 mA supplied by the controller |
| [Us] rated supply voltage | 24 V +/- 10 % AC | 20...38 V DC |
| Power consumption in W | 10 W at 24 V AC/DC |
| Realtime clock | Built-in clock, clock drift <= 30 s/month at -20…60 °C |
| Display type | Without display |
| Overvoltage category | II |
| Local signalling | 1 LED (red) for programmable | 1 LED (yellow) for programmable | 1 LED (green) for programmable | 1 LED (green) for power |
| Mounting support | DIN rail | Panel mounting with accessory |
| Width | 72 mm |
| Height | 110 mm |
| Depth | 60.5 mm |
| Net weight | 0.17 kg |
| Directives | 2014/30/EU - electromagnetic compatibility | 2014/35/EU - low voltage directive |
| Standards | EN 60068-2-6 Fc | UL 60730-1 | IEC 61000-4-3 | IEC 61000-4-6 | IEC 61000-4-5 | IEC 61000-4-4 | IEC 61000-4-11 | CSA E60730-2-9 | CAN/CSA-E60730-1 | UL 60730-2-9 | EN 60730-1 | EN 60068-2-27 | EN 60730-2-9 | IEC 61000-4-2 | UL94 (material V0) |
| Product certifications | RCM | EAC | cURus | CE | CSA |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -30…70 °C |
| Relative humidity | 5…95 % non-condensing |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 13.500 cm |
| Package 1 Weight | 239.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.930 kg |
