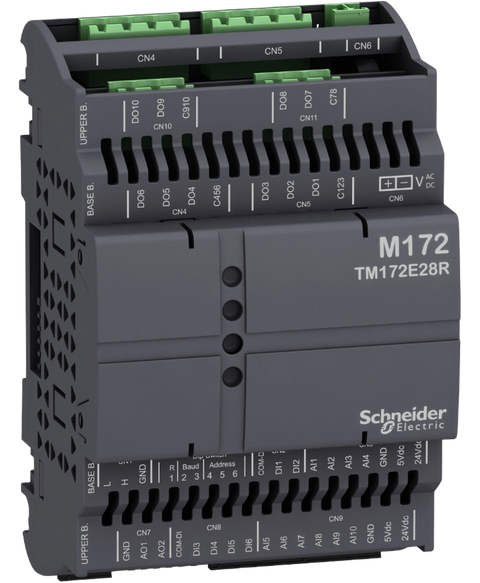

Schneider Electric TM172E28R
Control module, performance expansion 28 i,os, DIN-rail, 24VAC, 24va, 20-38VDC, 15W
This Schneider Electric TM172E28R is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26805580035.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$338.78
(inc. GST)
In Stock
| Range of product | Modicon M171/M172 |
| Product or component type | Additional I/O module |
| Product specific application | HVAC control |
| Total inputs/outputs | 28 |
| Discrete input number | 2 | 4 |
| Discrete output number | 3 for relay outputs SPST with same common | 2 for relay outputs SPST with same common |
| Discrete output current | 3 A for relay SPST |
| Analogue input number | 10 configurable by pair |
| Analogue output number | 2 programmable |
| Number of port | 1 CAN port - screw terminal block |
| Input/output number | 2 analog output(s) | 6 digital input(s) | 10 analog input(s) | 10 digital output(s) |
| Discrete input logic | 2 positive logic (sink) up to 2 kHz | 4 positive logic (sink) |
| Discrete input voltage | 24 V AC/DC |
| Discrete input current | 2.5 mA AC/DC |
| Input impedance | 20 kOhm |
| Analogue input type | NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C) | NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C) | current 0...20 mA - resolution: 1 digit at < 150 Ohm | current 4...20 mA - resolution: 1 digit at < 150 Ohm | voltage 0...10 V - resolution: 1 digit at > 10 kOhm | voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric) | impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm | impedance 0...300 daOhm - resolution: 1 daOhm at 2 kOhm | direct input - resolution: 1 digit (Dry contact) | PTC - 55...150 °C - resolution: 0.1 °C at 2 kOhm | Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 2 kOhm |
| Measurement accuracy | NTC NK103 - 40...+110 °C +/- 1 °C | NTC NK103 110...137 °C +/- 1.9 °C | NTC 103AT-2 - 50…110 °C +/- 1 °C | PTC - 55...+135 °C +/- 1.1 °C | PTC - 150…135 °C +/- 3.1 °C | Pt 1000 - 200...-100 °C +/- 5 °C | Pt 1000 - 100...-50 °C +/- 3 °C | Pt 1000 - 50...+200 °C +/- 1.5 °C | Pt 1000 200...600 °C +/- 15 °C | Pt 1000 600...850 °C +/- 30 °C | 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit | 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit | 4...20 mA +/- 1 % of full scale +/- 1 digit | 0...10 V +/- 1 % of full scale +/- 1 digit | 0...5 V +/- 1 % of full scale +/- 1 digit | HOhm 0...700 hOhm +/- 10 hOhm | HOhm 700 hOhm...1200 hOhm +/- 25 hOhm | HOhm 1200 hOhm...1500 hOhm +/- 60 hOhm | DaOhm 0...300 daOhm +/- 2.5 daOhm |
| Sensor power supply | 5 V DC at 50 mA | 24 V DC at 125 mA |
| [Us] rated supply voltage | 24 V +/- 10 % AC | 20...38 V DC |
| Power consumption in W | 24 VA at 24 V AC | 15 W at 24 V DC |
| Realtime clock | Without clock |
| Display type | Without display |
| Overvoltage category | II |
| Mounting support | DIN rail | Panel mounting with accessory |
| Width | 72 mm |
| Height | 110 mm |
| Depth | 59 mm |
| Net weight | 0.19 kg |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Standards | IEC 61000-4-4 | EN 60068-2-27 | CSA E60730-2-9 | IEC 61000-4-11 | CAN/CSA-E60730-1 | UL 60730-2-9 | EN 60730-2-9 | EN 60730-1 | IEC 61000-4-5 | IEC 61000-4-3 | EN 60068-2-6 Fc | IEC 61000-4-2 | UL94 (material V0) |
| Product certifications | cURus | EAC | CE | RCM | CSA |
| Ambient air temperature for operation | -20…65 °C conforming to UL 60730-1 |
| Ambient air temperature for storage | -30…70 °C |
| Relative humidity | 5…95 % non-condensing |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.500 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 12.700 cm |
| Package 1 Weight | 258.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.330 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 128 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 45.500 kg |
