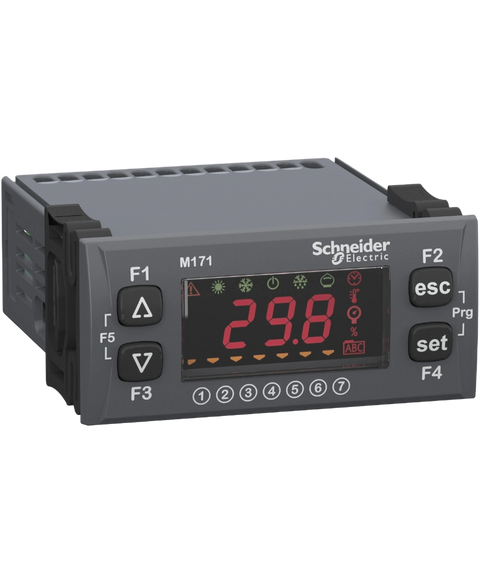

Schneider Electric TM171OF22R
Prog logic controller, 22 I,O, 24v; NO. of inputs:11inputs; NO. of outputs:11outputs; supply voltage:24v; product range:modicon m171 series rohs compliant: yes
This Schneider Electric TM171OF22R is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26897570235.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M171/M172 |
| Product or component type | Controller |
| Product specific application | HVAC and pumping solution |
| Variant | Programmable |
| Total inputs/outputs | 22 |
| Discrete input number | 6 |
| Discrete output number | 1 for open collector | 3 for relay outputs SPST with same common | 2 for relay outputs SPST with independent common |
| Discrete output current | 2 A for relay |
| Analogue input number | 2 configurable | 3 analog input NTC |
| Analogue output number | 3 voltage, range: 0...10 V | 2 PWM/PPM, range: 20 kHz, 12 V, 35 mA |
| Number of port | 1 LAN expansion bus |
| Input/output number | 5 analog output(s) | 6 digital input(s) | 5 analog input(s) | 6 digital output(s) |
| Discrete input logic | Sink or source (positive/negative) |
| Contacts usage | Volt-free contacts |
| Analogue input type | voltage 0...5 V (ratiometric) | voltage 0...10 V | NTC temperature probe - 50...100 °C - resolution: 0.1 °C | current 0...20 mA/4...20 mA | voltage 0...1 V |
| Sensor power supply | 12 V DC at 85 mA | 5 V DC at 20 mA |
| [Us] rated supply voltage | 12...24 V +/- 20 % AC/DC | 24 V +/- 20 % DC |
| Power consumption in W | 18 W at 24...48 V AC/DC |
| Realtime clock | Built-in clock at -10…55 °C |
| Display type | Without display |
| Overvoltage category | II |
| Local signalling | 1 LED (red) for programmable | 1 LED (yellow) for programmable | 1 LED (green) for programmable |
| Mounting support | DIN rail |
| Width | 140 mm |
| Height | 110 mm |
| Depth | 61.6 mm |
| Net weight | 0.385 kg |
| Directives | 86/188/EEC - physical agents (noise) directive | 2006/95/EC - low voltage directive |
| Standards | EN/IEC 60730 |
| Product certifications | CE | cURus | CSA | EAC |
| Ambient air temperature for operation | -10…55 °C conforming to UL 60730-1 |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 10…90 % non-condensing |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.200 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 12.500 cm |
| Package 1 Weight | 226.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.590 kg |
