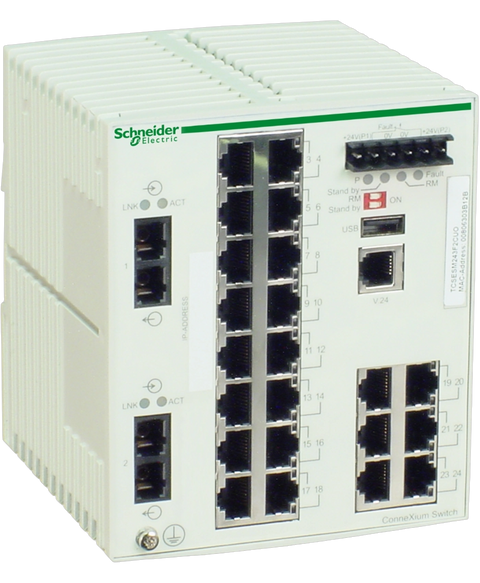

Schneider Electric TCSESM243F2CU0
Ethernet TCP,IP managed switch - ConneXium -22TX,2FX - multimode
This Schneider Electric TCSESM243F2CU0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules range and is referenced internally as PartLogic SKU PL26902750468.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | ConneXium |
| Product or component type | Ethernet TCP/IP managed switch |
| Concept | Transparent Ready |
| Communication port protocol | Ethernet TCP/IP | SSH | HTTP | HTTPS | SNMP | RS232 | LLDP | Telnet | SNTP | MRP (Media Redundancy Protocol) |
| Port Ethernet | 100BASE-FX - 2 port(s) fiber optic | 10/100BASE-TX - 22 port(s) copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Port hardening |
| Integrated connection type | Duplex SC fiber optic | Shielded RJ45 copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable | Multimode optical fiber for fiber optic |
| Maximum cable distance between devices | 100 m copper cable |
| Optic fiber length | 4 km 62.5/125 µm | 5 km 50/125 µm |
| Attenuation | 0…11 dB (62.2/125 µm) | 0…8 dB (50/125 µm) |
| Ethernet service | Configuration via web server | VLAN | Multicast filtering | Data stream control | IGMP Snooping | SNMP-Traps and SYSLOG |
| Communication service | TFTP | Quality of Service (QoS) | Port monitoring | Port mirroring | Address conflict detection |
| Diagnostics run time | Signal contact | Self test |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring | RSTP | Redundant network coupling |
| [Us] rated supply voltage | 12...48 V |
| Supply voltage limits | 9.6…60 V DC SELV | 18…30 V AC SELV |
| Power consumption in W | 14.5 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE | UL | RCM | EtherNet/IP |
| Function available | Alarms (Traps) | System information | Report | Trap log |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies | 1 LED (red) for fault | 1 dual colour LED (green/yellow) for ring manager | 1 LED (green) for stand-by | 1 LED per channel (green) for link status | 1 LED per channel (yellow) for ACT | Device status |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault | Data link status | Redundancy ring fault | Switch fault |
| Ethernet cabling system | TF switches |
| Width | 111 mm |
| Height | 131 mm |
| Depth | 111 mm |
| Net weight | 0.61 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % non-condensing |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Standards | UL 508 | EN/IEC 61131 | IEC 61850-3 |
| Product certifications | CE | UL | RCM | ODVA EtherNet/IP | BV | GL |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.200 cm |
| Package 1 Width | 16.300 cm |
| Package 1 Length | 23.300 cm |
| Package 1 Weight | 924.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 8.062 kg |
