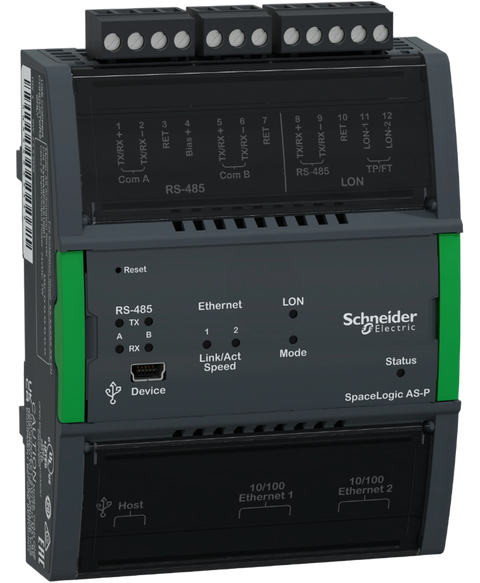

Schneider Electric SXWASPXXX10001
Server controller, smart x series, 24VDC, 400mA, 10 watt, pc,abs material enclosure, 512 mb ram, 4 gb flash memory, DIN rail mounting, 464 I,O,29 module limit capacity, 0 to 50 degree c, IP20
This Schneider Electric SXWASPXXX10001 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Energy meters range and is referenced internally as PartLogic SKU PL26805599364.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Controller |
| Product certifications | BTL | CE | cULus | FCC part 15 class B | ICES-003 |
| Communication service | SNMP network management | SMTP e-mail notification | SMTPS e-mail notification | Modbus TCP client | Modbus TCP server |
| Current consumption | 400 mA |
| Device short name | AS-P |
| Flame retardance | UL94V0-5VB |
| IP degree of protection | IP20 |
| Depth | 64 mm |
| Height | 114 mm |
| Net weight | 321 g |
| Width | 90 mm |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…70 °C |
| Memory type | 512 MB RAM | 4 GB flash |
| Standards | UL 94 | UL 916 | FCC CFR 47 part 15 |
| Range | EcoStruxure Building Operation |
| Product brand | Schneider Electric |
| I/O limit processor capacity | 464 I/O, 29 modules |
| Material | ABS/PC |
| Product mounting | On base | DIN rail |
| Web services | TLS 1.0 | HTTP server | Programmable scripts : alarm summaries, report management |
| Integrated connection type | USB 2.0 type A | USB type mini B |
| Processor name | Spear 320s |
| Range compatibility | EcoStruxure Building Operation TB-ASP-W1 terminal base | EcoStruxure Building Operation TB-AS-W1 terminal base |
| Communication port protocol | BACnet | Modbus TCP master RS485 | Modbus TCP slave RS485 | HTTPS RJ45 | HTTP RJ45 | LON TP/FT-10 |
| Relative humidity | 0…95 % |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.4 cm |
| Package 1 Width | 6 cm |
| Package 1 Length | 13.6 cm |
| Package 1 Weight | 240 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 10.513 kg |
