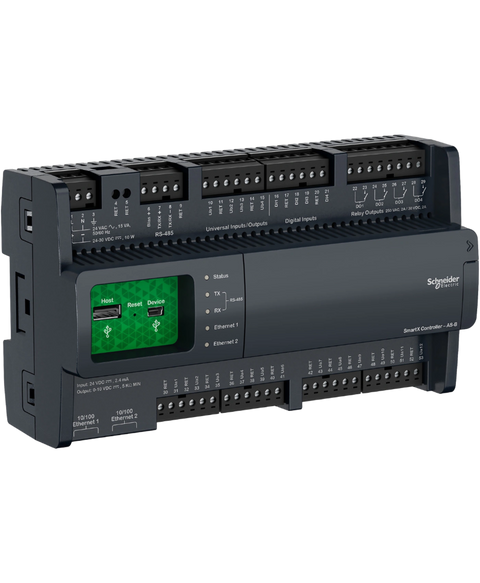

Schneider Electric SXWASB24X10001
Automation server, SpaceLogic Plant Room Servers, AS-B-24, 24 I,O points, BACnet, MS,TP, modbus
This Schneider Electric SXWASB24X10001 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Energy meters range and is referenced internally as PartLogic SKU PL26906211624.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Communication service | Modbus TCP server | Modbus TCP client | SMTPS e-mail notification | SNMP network management | SMTP e-mail notification |
| Network frequency | 50 Hz | 60 Hz |
| Ambient air temperature for storage | -20…70 °C |
| IP degree of protection | IP20 |
| Width | 198 mm |
| Product certifications | ICES-003 | BTL | FCC part 15 class B | cULus | CE | RCM |
| Power consumption in W | 10 W |
| Power consumption in VA | 15 VA |
| Clock drift | +/- 52 s/month |
| Product or component type | Controller system |
| Device short name | AS-B-24 |
| Display type | FSTN transflective LCD |
| Display resolution | 128 x 64 pixels |
| Ambient air temperature for operation | 0…50 °C |
| Input/output type | 16 universal I/O |
| Relative humidity | 0…95 % non-condensing |
| Memory type | 256 MB FRAM | 2 GB flash |
| [Us] rated supply voltage | 19...29 V AC | 21...33 V DC |
| Number of inputs | 4 digital |
| Number of outputs | 4 relay |
| Height | 114 mm |
| Product weight | 5.04 kg |
| Depth | 64 mm |
| Number of port | 2 ETHERNET |
| Range | EcoStruxure Building Operation |
| Switching frequency | 25 Hz |
| Web services | TLS 1.0 | Programmable scripts : alarm summaries, report management | HTTP server |
| Mounting support | DIN rail |
| Product compatibility | Xenta | I/NET | Continuum | Balco | Satchwell | Honeywell | Johnson Control |
| Product brand | Schneider Electric |
| Display colour | Monochrome |
| Flame retardance | UL94V0-5VB |
| Electrical connection | plug-in sub-base | terminal with a manual overide switch |
| Supply | Power supply: 24 V, <0.5 A |
| Integrated connection type | USB 2.0 type A | USB type mini B | Ethernet with RJ45 connector | Serial link with RS485 connector |
| Analogue input type | Configurable voltage, current or probe 0...20 mA | Configurable voltage, current or probe 0...10 V input voltage | Configurable voltage, current or probe 20 kOhm connection of probes | Configurable voltage, current or probe 10 kOhm connection of probes | Configurable voltage, current or probe 2.2 kOhm connection of probes | Configurable voltage, current or probe 1.8 kOhm connection of probes | Configurable voltage, current or probe 1 kOhm connection of probes | Configurable voltage, current or probe 10 kOhm with shunt |
| Communication port protocol | BACnet | Modbus TCP master RS485 | Modbus TCP slave RS485 | HTTPS RJ45 | HTTP RJ45 |
| Realtime clock | With |
| Processor name | Spear 320s |
| Standards | UL 916 | FCC CFR 47 part 15 |
| Material | ABS/PC |
| Temperature probe type | LG-Ni 1000 - 50...150 °C | Ni 1000 - 50...150 °C | Pt 1000 - 50...150 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.6 cm |
| Package 1 Width | 11.6 cm |
| Package 1 Length | 7 cm |
| Package 1 Weight | 540 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 6.281 kg |
