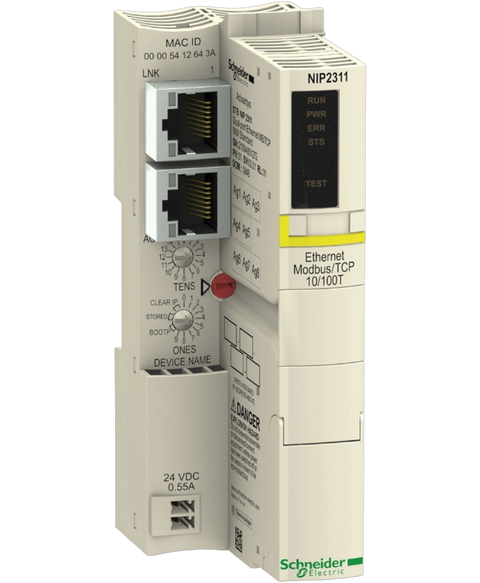

Schneider Electric STBNIP2311
Network interface module, for modicon stb, ethernet Modbus, 10,100Mbit,s, input: 24VDC , 430mA, output: 5.25VDC , 1.2A, IP20
This Schneider Electric STBNIP2311 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Distributed io range and is referenced internally as PartLogic SKU PL26805551138.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Standard Network Interface Module |
| Integrated connection type | Ethernet Modbus TCP/IP conforming to IEEE 802.3 2 female RJ45 double shielded twisted pair via Ethernet (network) | Ethernet Modbus TCP/IP conforming to IEEE 802.3 HE-13 (RS232 port) | Ethernet Modbus TCP/IP conforming to IEEE 802.3 8-way female (RS232 port) |
| Number of segments | 1 primary, maximum 6 extensions |
| Structure type | Industrial LAN |
| Number of addressable I/O module | 0…32 per island |
| Input current | 550 mA for supply circuit |
| Nominal output current | 0.575 A at 60…70 °C | 1.2 A |
| Output voltage | 5.25 V DC (tolerance: +/- 0.21 %) for logic bus |
| Exchange mode | Half or full duplex |
| Transmission rate | 10/100 Mbit/s |
| Communication service | SNMP agent | BootP/DHCP protocol | Modbus TCP/IP messaging | Embedded web (configuration,diagnostics and access to variable) |
| Power supply type | SELV |
| Local signalling | 1 LED for ACT | 1 LED for island state (RUN) | 1 LED for module error (ERR) | 1 LED for MS | 1 LED for NS | 1 LED for power supply (PWR) | 1 LED for test mode (TEST) |
| Height | 40.5 mm |
| Width | 130 mm |
| Depth | 70 mm |
| Net weight | 0.145 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | UL | ODVA | C-Tick | ATEX Cat 3G | CSA |
| Ambient air temperature for operation | 0…60 °C without derating | -25…70 °C with derating factor |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Vibration resistance | 3 gn (f = 58…150 Hz) on 35 mm DIN rail | 5 gn (f = 58…150 Hz) on 35 mm DIN rail | +/-0.35 mm (f = 10…58 Hz) |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.300 cm |
| Package 1 Width | 7.300 cm |
| Package 1 Length | 13.000 cm |
| Package 1 Weight | 171.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.450 kg |
