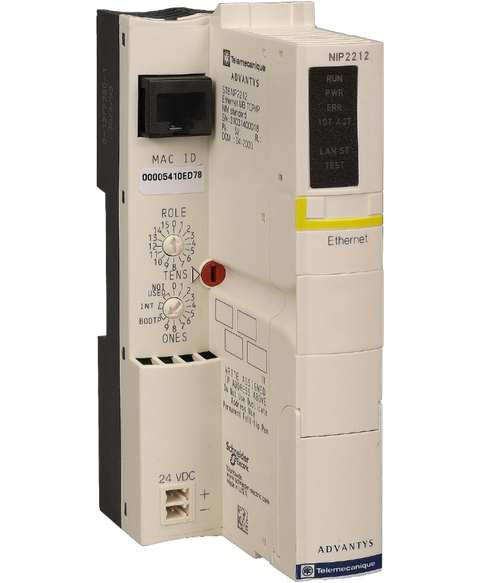

Schneider Electric STBNIP2212
The Schneider Electric STBNIP2212 is a dedicated network interface module designed for communications over Modbus TCP,IP. It operates at an input voltage of 24 V DC and has a current draw of 100 mA, providing the necessary power requirements for efficient operation.
This Schneider Electric STBNIP2212 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Distributed io range and is referenced internally as PartLogic SKU PL26805541616.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Standard Network Interface Module |
| Number of segments | 1 primary, maximum 6 extensions |
| Number of devices per segment | 0…256 |
| Number of addressable I/O module | 0…32 per island |
| Input current | 430 mA for supply circuit |
| Nominal output current | 0.575 A at 60…70 °C | 1.2 A |
| Output voltage | 5.25 V DC (tolerance: +/- 0.21 %) for logic bus |
| Electromagnetic compatibility | Immunity to electromagnetic interference conforming to IEC 61131-2 |
| Transmission rate | 10 Mbit/s |
| Communication service | SNMP agent | Modbus TCP/IP messaging | Embedded web (configuration,diagnostics and access to variable) | BootP/DHCP protocol |
| Power supply type | SELV |
| Local signalling | 1 LED green for status | 1 LED green for 10T | 1 LED green for island state (RUN) | 1 LED green for power supply (PWR) | 1 LED red for module error (ERR) | 1 LED yellow for test mode |
| Height | 128.3 mm |
| Width | 40.5 mm |
| Depth | 70 mm |
| Net weight | 0.13 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CSA | UL | FM Class 1 Division 2 | ATEX Cat 3G | C-Tick |
| Ambient air temperature for operation | 0…60 °C without derating | -25…70 °C with derating factor |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Vibration resistance | 3 gn (f = 58…150 Hz) on 35 mm DIN rail | 5 gn (f = 58…150 Hz) on 35 mm DIN rail | +/-0.35 mm (f = 10…58 Hz) |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.400 cm |
| Package 1 Width | 7.300 cm |
| Package 1 Length | 13.000 cm |
| Package 1 Weight | 163.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.193 kg |
