Schneider Electric STBDDO3705

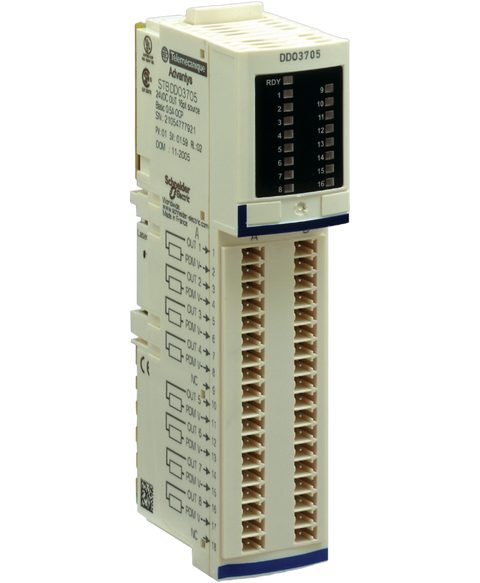

The STBDDO3705 from Schneider Electric's Modicon series is a reliable component featuring 16 transistor outputs. It operates at a nominal voltage of 24 V DC and handles a maximum output current of 8 A across all channels, making it suitable for various applications requiring positive logic control.
This Schneider Electric STBDDO3705 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Distributed io range and is referenced internally as PartLogic SKU PL26805678069.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Basic digital output module |
| Product compatibility | Power distribution module STBPDT3100/3105 | I/O base STBXBA3000 |
| Range compatibility | Logic/motion controller - Modicon M262 | Modicon M580 | Third party |
| Device application | Industrial application |
| Discrete output number | 16 |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC for solid state |
| Output voltage | 19.2...30 V DC |
| Absolute maximum voltage | 56 V 1.3 ms |
| Discrete output current | 500 mA |
| Response time on output | 2 ms off to on | 2 ms on to off |
| Maximum leakage current | 0.4 mA 30 V DC at state 0 |
| Power supply type | Power distribution module |
| Typical current consumption | 135 mA at 5 V DC |
| Electrical connection | Screw terminal |
| Isolation between channels and bus | 1500 V for 1 minute |
| Reset | Manual reset COM fault |
| Overvoltage category | II |
| Local signalling | 1 LED (green) for module status (RDY) | 1 LED per channel (green) for channel status (OUT1 to OUT16) |
| Height | 13.9 mm |
| Width | 128.3 mm |
| Depth | 70 mm |
| Net weight | 0.086 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | UL | CSA | FM Class 1 Division 2 |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | 0…60 °C (without derating) |
| Ambient air temperature for storage | -40…85 °C without derating |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3 gn (f = 58…150 Hz) on 35 x 7.5 mm symmetrical DIN rail | 5 gn (f = 58…150 Hz) on 35 x 15 mm symmetrical DIN rail | +/-0.35 mm (f = 10…58 Hz) |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.05 cm |
| Package 1 Width | 6.6 cm |
| Package 1 Length | 12.95 cm |
| Package 1 Weight | 100 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 5.322 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 768 |
| Package 3 Height | 75.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 95.1 kg |
