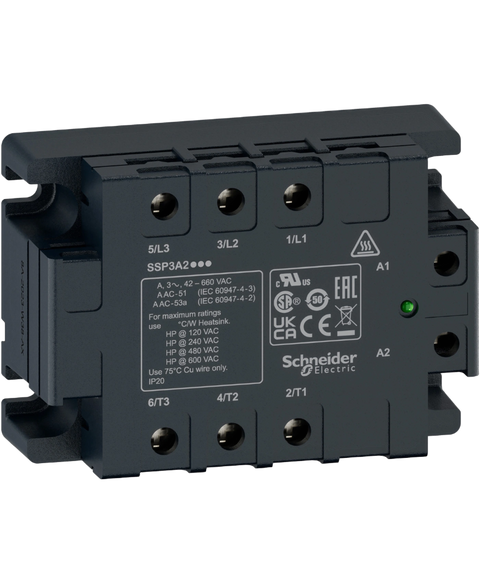

Schneider Electric SSP3A250BDT
Solid state relay, 3pst-NO, 50A, 4-32VDC, 48-530VAC, panel mounting, relay screw terminals, zero crossing, rohs compliant
This Schneider Electric SSP3A250BDT is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Solid state relays range and is referenced internally as PartLogic SKU PL26805561926.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$350.12
(inc. GST)
In Stock
| Range of product | Harmony Solid State Relays |
| Provided accessory | Thermal pad |
| Product or component type | Panel mount relay |
| Device short name | SSP |
| Mounting support | Panel |
| Number of phases | 3 phases |
| [In] rated current | 50 A |
| Solid state output type | Zero voltage switching |
| Output switching mode | Zero voltage switching |
| test button | Without test button |
| [Uc] control circuit voltage | 4...32 V DC |
| Minimum switching voltage | 4 V DC turn-on |
| Maximum switching voltage | 1 V DC turn-off |
| Response time | 8.33 ms (turn-on) | 8.33 ms (turn-off) |
| Input current | 15…35 mA |
| Output voltage | 42...660 V AC |
| Load current | 0.4…50 A |
| Transient overvoltage | 1200 V |
| Surge current | 715 A for 20 ms | 750 A for 16.6 ms |
| Maximum I²t for fusing | 2520 A².s for 10 ms at 50 Hz | 2320 A².s for 8.3 ms at 60 Hz |
| Co-ordination type | TVS |
| Maximum leakage current | 3 mA off-state |
| Maximum voltage drop | <1.6 V on-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Power factor | 0.5 (with maximum load) |
| Motor controller rating | 1.5 hp 40 °C 120 V AC | 3 hp 40 °C 240 V AC | 7.5 hp 40 °C 480 V AC | 10 hp 40 °C 600 V AC |
| Motor power kW | 1.1 kW at 40 °C 120 V AC | 2.2 kW at 40 °C 240 V AC | 5.5 kW at 40 °C 480 V AC | 7.5 kW at 40 °C 600 V AC |
| Insulation resistance | >= 1000 MOhm at 500 V DC |
| Maximum capacitance | 8 pF for input/output |
| Dielectric strength | 4 kV AC for input/output | 4 kV AC for input or output to case |
| [Uimp] rated impulse withstand voltage | 0.8 kV for input to case | 6 kV for input/output circuit | 6 kV for input/output to case |
| Tightening torque | 1.2 N.m for input | 2.5 N.m for output |
| Connections - terminals | Screw terminals: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 14) for input | Screw terminals: 1 x 1.5...1 x 10 mm², (AWG 16...AWG 8) for output |
| Thermal resistance | 0.15 °C/W |
| LED indicator | LED, green for input |
| IP degree of protection | IP20 |
| Electromagnetic compatibility | Electrostatic discharge 4 kV criteria B contact discharge conforming to IEC 61000-4-2 | Electrostatic discharge 8 kV criteria B air discharge conforming to IEC 61000-4-2 | Conducted RF disturbances 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6 | Radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3 | Surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5 | Surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5 | Surge immunity test 1 kV criteria B input ports line to earth conforming to IEC 61000-4-5 | Electrical fast transient/burst immunity test 2 kV, 5kHz criteria B output ports conforming to IEC 61000-4-4 | Immunity to voltage dips 0 %/20 ms criteria B conforming to IEC 61000-4-11 | Immunity to voltage dips 40 %/200 ms criteria C conforming to IEC 61000-4-11 | Immunity to voltage dips 70 %/500 ms criteria C conforming to IEC 61000-4-11 | Immunity to short interruption 0 %/5 s criteria C conforming to IEC 61000-4-11 | Electrical fast transient/burst immunity test 1 kV, 5kHz criteria B input ports conforming to IEC 61000-4-4 | Radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3 | Radiated emission 30...1000 Mhz environment A conforming to IEC 60947-1 | Conducted emission 0.15...30 Mhz environment A conforming to IEC 60947-1 |
| Net weight | 0.37 kg |
| Width | 104 mm |
| Height | 74.6 mm |
| Depth | 41 mm |
| Device presentation | Complete product |
| Flame retardance | V0 conforming to UL 94 |
| Ambient air temperature for operation | -40…80 °C |
| Ambient air temperature for storage | -40…125 °C |
| Pollution degree | 2 |
| Overvoltage category | III |
| Product certifications | CE | CSA | EAC | UL | UKCA |
| Marking | CE |
| Standards | IEC/EN 62314 | IEC/EN 60947-4-2 | IEC/EN 60947-4-3 | UL 60947-4-2 | C22.2 No. 14 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 8.100 cm |
| Package 1 Length | 11.600 cm |
| Package 1 Weight | 380.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.568 kg |
