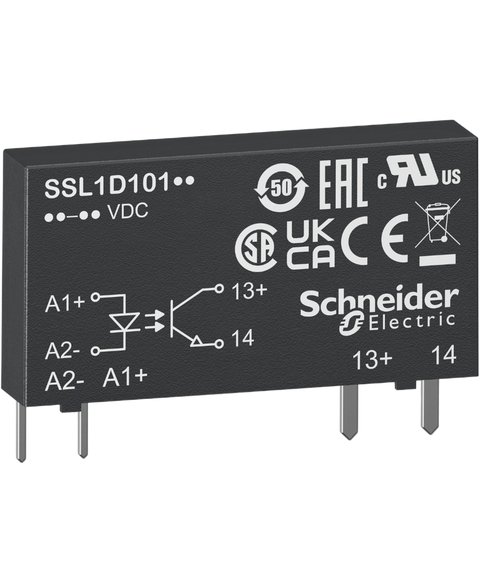

Schneider Electric SSL1A12BD
Ssr, pcb mount, 280VAC, 2A, th; contact configuration:spst-NO; load current:2A; operating voltage max:280VAC; relay mounting:pcb; relay terminals:through hole; switching mode:zero crossing; operating voltage min:24VAC rohs compliant: yes
This Schneider Electric SSL1A12BD is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Solid state relays range and is referenced internally as PartLogic SKU PL26805669531.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Solid State Relays |
| Device short name | SSL |
| Network number of phases | 1 phase |
| [Uc] control circuit voltage | 15...30 V |
| Output switching mode | Zero voltage switching |
| Short-circuit current | 5000 A |
| Associated fuse rating | 2.5 A at 250 V coordination type 1 |
| Ui rated insulation voltage | 280 V |
| Insulation resistance | > 100 MOhm at 500 V DC |
| Electromagnetic compatibility | Electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2 | Electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2 | Conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6 | Electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4 | Surge immunity test - test level: 1 kV criteria B (line to line) conforming to IEC 61000-4-5 | Surge immunity test - test level: 2 kV criteria B (line to earth) conforming to IEC 61000-4-5 | Surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5 | Radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1 | Conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4.0 kV for input to case conforming to IEC 62314 | 4.0 kV for input/output circuit conforming to UL 508 | 4.0 kV for input/output circuit conforming to IEC 62314 | 4.0 kV output to case conforming to IEC 62314 | 4.0 kV output to case | 4.0 kV for input to case conforming to UL 508 | 4.0 kV output to case conforming to UL 508 |
| Mounting support | Socket |
| [In] rated current | 2 A |
| Output voltage | 24...280 V AC |
| Capacitance unbalance | 2.5 pF input/output |
| Minimum switching voltage | 15 V DC turn-on |
| Maximum switching voltage | 10 V DC turn-off |
| Input current | 10 mA |
| Input impedance | 2500 Ohm |
| Solid state output type | Zero voltage switching | SCR output |
| Load current | 0.07…2 A |
| Transient Overvoltage | 600 V |
| Surge current | 84 A for 16.6 ms | 80 A for 20 ms |
| Maximum voltage drop | <1.5 V on-state |
| Maximum I²t for fusing | 33 A².s for 10 ms at 50 Hz | 29 A².s for 8.3 ms at 60 Hz |
| Maximum leakage current | 4 mA off-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Response time | 0.5 cycle (turn-on) | 0.5 cycle (turn-off) |
| Overvoltage category | III |
| Width | 5 mm |
| Height | 28 mm |
| Depth | 15 mm |
| Net weight | 0.0041 kg |
| Device presentation | Complete product |
| Flame retardance | V0 conforming to UL 94 |
| Dielectric strength | 2500 V for input/output |
| Pollution degree | 2 |
| Standards | IEC/EN 60947-4-3 | IEC/EN 62314 | UL 508 | C22.2 No. 14 |
| Product certifications | cURus | CSA | EAC | CE | UKCA |
| Marking | CE |
| IP degree of protection | IP00 |
| Ambient air temperature for operation | -20…80 °C |
| Ambient air temperature for storage | -20…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 0.500 cm |
| Package 1 Length | 2.800 cm |
| Package 1 Weight | 3.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.000 cm |
| Package 2 Width | 5.000 cm |
| Package 2 Length | 12.500 cm |
| Package 2 Weight | 55.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 280 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 1.802 kg |
