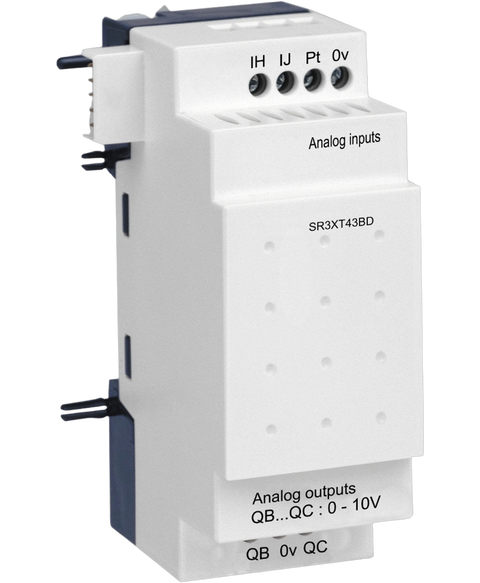

Schneider Electric SR3XT43BD
Analogue I,O extension module, for zelio logic, 2 analogue input, 2 analogue output, input range: 0-10 v , 0-20mA , -25 to +125 °C, output range: 0-10 v, IP20,40
This Schneider Electric SR3XT43BD is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Smart relays > Accessories range and is referenced internally as PartLogic SKU PL26805547555.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$469.20
(inc. GST)
In Stock
| Range of product | Zelio Logic |
| Product or component type | Analogue I/O extension module |
| Analogue input number | 2 |
| Analogue input type | Common mode |
| Analogue input range | 0...10 V | 0...20 mA | -25...125 °C |
| Temperature probe type | Pt 100, 3-wire conforming to IEC 751 |
| Maximum permissible voltage | 30 V for analogue input circuit |
| [Imp] maximum permanent current | 30 mA for analogue input circuit |
| Analogue input resolution | 10 bits on the input range |
| Input impedance | 18 kOhm, input range: 0...10 V for analogue input circuit | 247 Ohm, input range: 0...20 mA for analogue input circuit |
| Analogue output number | 2 |
| Analogue output range | 0...10 V |
| Analogue output resolution | 10 bits on the output range |
| Load type | Resistive load for analogue output |
| Maximum load current | 10 mA for analogue output |
| Short-circuit protection | With analogue output |
| LSB value | 0.15 °C, - 25...125 °C for analogue input circuit | 20 µA, 0...20 mA for analogue input circuit | 9.8 mV, 0...10 V for analogue input circuit | 9.8 mV, 0...10 V for analogue output |
| Conversion time | Smart relay cycle time for analogue input circuit | Smart relay cycle time for analogue output |
| Conversion error | +/- 1 % of the full scale value, input range: 0...10 V (25 °C) for analogue output | +/- 1 % of the full scale value, input range: 0...10 V (55 °C) for analogue output | +/- 1 %, input range: 0...10 V (25 °C) for analogue input circuit | +/- 1 %, input range: 0...10 V (55 °C) for analogue input circuit | +/- 1 %, input range: 0...20 mA (25 °C) for analogue input circuit | +/- 1 %, input range: 0...20 mA (55 °C) for analogue input circuit | +/- 1.5 °C, input range: - 25...125 °C (25 °C) for analogue input circuit | +/- 1.5 °C, input range: - 25...125 °C (55 °C) for analogue input circuit |
| Repeat accuracy | < +/- 0.3 °C, input range: - 25...125 °C at 25 °C for analogue input circuit | <= +/- 1 %, input range: 0...10 V at 25 °C for analogue input circuit | <= +/- 1 %, input range: 0...10 V at 55 °C for analogue output | <= +/- 1 %, input range: 0...20 mA at 25 °C for analogue input circuit |
| Operating distance | 10 m with screened cable for analogue input circuit | 10 m with screened cable for analogue output |
| Reverse polarity protection | Analogue input circuit: with |
| Connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) semi-solid | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) solid | Screw terminals, 2 x 0.25...2 x 1.5 mm² (AWG 23...AWG 16) solid | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end | Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| tightening torque | 0.5 N.m |
| Net weight | 0.11 kg |
| Product certifications | GOST | UL | C-Tick | CSA |
| Standards | IEC 61000-4-12 | IEC 61000-4-5 | IEC 61000-4-3 | IEC 61000-4-4 level 3 | IEC 61000-4-6 level 3 | IEC 61000-4-2 level 3 | IEC 60068-2-6 Fc | IEC 61000-4-11 | IEC 60068-2-27 Ea |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 | IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2 | EMC directive conforming to IEC 61000-6-3 | EMC directive conforming to IEC 61000-6-4 | EMC directive conforming to IEC 61131-2 zone B | Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B conforming to IEC 55022-11 Group 1 |
| Pollution degree | 2 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -20…40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 | -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| Relative humidity | 95 % without condensation or dripping water |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.000 cm |
| Package 1 Width | 6.500 cm |
| Package 1 Length | 11.000 cm |
| Package 1 Weight | 105.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.516 kg |
