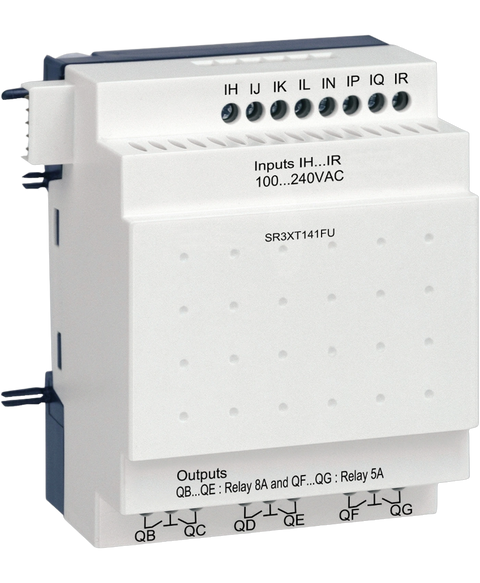

Schneider Electric SR3XT141FU
discrete I,O extension module - 14 I O - 100..240 V AC - for Zelio Logic
This Schneider Electric SR3XT141FU is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Smart relays > Accessories range and is referenced internally as PartLogic SKU PL26805654527.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$362.88
(inc. GST)
In Stock
| Range of product | Zelio Logic |
| Product or component type | Discrete I/O extension module |
| Number or control scheme lines | 120 with ladder programming |
| Cycle time | 6…90 ms |
| Backup time | 10 years at 25 °C |
| Clock drift | 12 min/year at 0…55 °C |
| Checks | Program memory on each power up |
| [Us] rated supply voltage | 100...240 V AC |
| Supply voltage limits | 85…264 V |
| Supply frequency | 50/60 Hz |
| Reverse polarity protection | With |
| Discrete input number | 8 |
| Discrete input voltage | 100...240 V AC |
| Discrete input current | 0.6 mA |
| Discrete input frequency | 57...63 Hz | 47...53 Hz |
| Voltage state 1 guaranteed | >= 79 V for discrete input |
| Voltage state 0 guaranteed | <= 40 V for discrete input |
| Current state 1 guaranteed | >= 0.17 mA (discrete input) |
| Current state 0 guaranteed | <= 0.5 mA (discrete input) |
| Input impedance | 350 kOhm for discrete input |
| Number of outputs | 6 relay |
| Output voltage limits | 5...30 V DC (relay output) | 24...250 V AC |
| Contacts type and composition | NO for relay output |
| Output thermal current | 5 A for 2 outputs for relay output | 8 A for 4 outputs for relay output |
| Electrical durability | AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 | DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1 | DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 |
| Switching capacity in mA | >= 10 mA at 12 V (relay output) |
| Operating rate in Hz | 0.1 Hz (at Ie) for relay output | 10 Hz (no load) for relay output |
| Mechanical durability | 10000000 cycles for relay output |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Response time | 50 ms with ladder programming (from state 0 to state 1) for discrete input | 50 ms with ladder programming (from state 1 to state 0) for discrete input | 50...255 ms with FBD programming (from state 0 to state 1) for discrete input | 50...255 ms with FBD programming (from state 1 to state 0) for discrete input | 10 ms (from state 0 to state 1) for relay output | 5 ms (from state 1 to state 0) for relay output |
| Connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end | Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid | Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid |
| tightening torque | 0.5 N.m |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net weight | 0.22 kg |
| Product certifications | C-Tick | GOST | CSA | GL | UL |
| Standards | IEC 61000-4-6 level 3 | IEC 61000-4-2 level 3 | IEC 61000-4-4 level 3 | IEC 60068-2-27 Ea | IEC 61000-4-5 | IEC 61000-4-11 | IEC 60068-2-6 Fc | IEC 61000-4-12 | IEC 61000-4-3 |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 | IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2 | EMC directive conforming to IEC 61000-6-3 | EMC directive conforming to IEC 61000-6-4 | EMC directive conforming to IEC 61131-2 zone B | Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Pollution degree | 2 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 | -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| Relative humidity | 95 % without condensation or dripping water |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.800 cm |
| Package 1 Width | 8.800 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 203.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.576 kg |
