Schneider Electric SH31001P11A2000

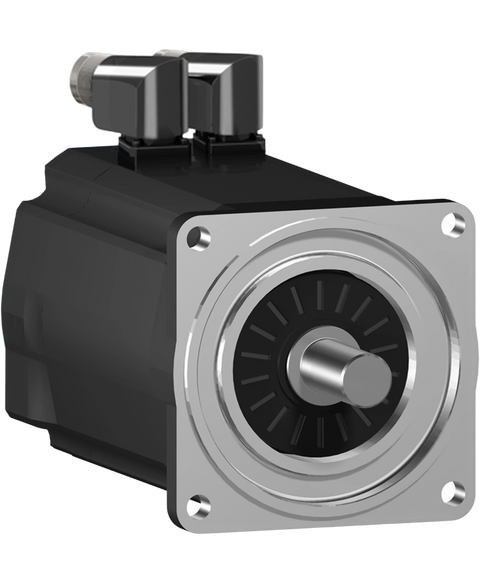

Servo motor, 3.3nm, key, single, NO brake, 90 degree connector, IP54,IP65, 6000 rpm, sh100,50030,0,1,00,00,00,00,00
This Schneider Electric SH31001P11A2000 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805537911.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range compatibility | PacDrive 3 |
| Device short name | SH3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 6000 rpm |
| [Us] rated supply voltage | 115...480 V |
| Network number of phases | Three phase |
| Continuous stall current | 3.5 A |
| Continuous stall torque | 2.94 N.m at 115...480 V three phase |
| Continuous power | 1190 W |
| Peak stall torque | 9.6 N.m at 115...480 V three phase |
| Nominal output power | 410 W at 115 V single phase | 790 W at 230 V single phase | 1410 W at 400 V three phase | 1630 W at 480 V three phase |
| Nominal torque | 2.91 N.m at 115 V single phase | 2.64 N.m at 230 V single phase | 2.27 N.m at 400 V three phase | 2.27 N.m at 480 V three phase |
| Nominal speed | 1250 rpm at 115 V single phase | 2500 rpm at 230 V single phase | 5000 rpm at 400 V three phase | 6000 rpm at 480 V three phase |
| Maximum current Irms | 12.0 A |
| Shaft end | Parallel key |
| Shaft diameter | 19 mm |
| Shaft length | 40 mm |
| Key width | 6 mm |
| IP degree of protection | IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 | IP65 motor: conforming to IEC 60034-5 | IP65 shaft bushing: conforming to IEC 60034-5 |
| Encoder type | Absolute single turn SinCos Hiperface |
| Speed feedback resolution | 128 periods |
| Holding brake | Without |
| Mounting support | International standard flange |
| Motor flange size | 100 mm |
| Electrical connection | Rotatable right angled connector |
| Torque constant | 0.84 N.m/A at 120 °C |
| Back emf constant | 60 V/krpm at 20 °C |
| Number of motor poles | 4.0 |
| Rotor inertia | 1.4 kg.cm² |
| Stator resistance | 3.8 Ohm |
| Stator inductance | 9.5 mH |
| Maximum radial force Fr | 900 N at 1000 rpm | 720 N at 2000 rpm | 630 N at 3000 rpm | 570 N at 4000 rpm | 530 N at 5000 rpm |
| Maximum axial force Fa | 160 N |
| Type of cooling | Natural convection |
| Length | 168.5 mm |
| Centring collar diameter | 95 mm |
| Centring collar depth | 3.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 9.0 mm |
| Circle diameter of the mounting holes | 115 mm |
| Net weight | 4.3 kg |
| Sizing reference | SH31001P |
| Temperature copper hot | 130 °C |
| Output current 3s peak | 12.0 A |
| Inertia | 0.0 kg.cm² of brake | 1.4 kg.cm² of motor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 21.500 cm |
| Package 1 Width | 25.000 cm |
| Package 1 Length | 42.000 cm |
| Package 1 Weight | 5.720 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 33.480 kg |
