Schneider Electric RXZE2M114

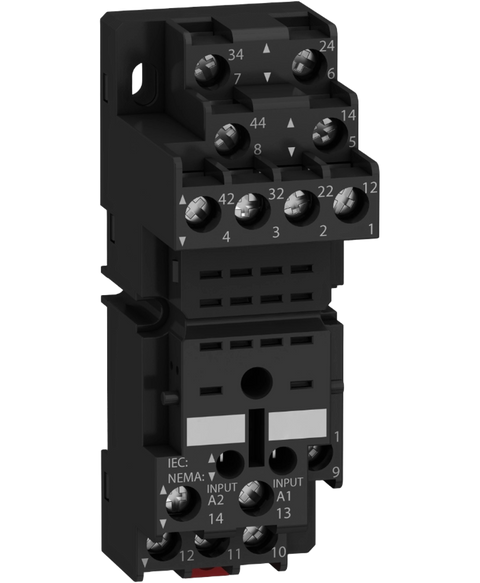

Socket, mixed contact, 10A, 250VAC, for use with relay type: rxm2 & rxm4, screw clamp terminals, IP20, replacement for rxze1m114
This Schneider Electric RXZE2M114 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Sockets range and is referenced internally as PartLogic SKU PL26801465968.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Electromechanical Relays | Harmony Timer Relays |
| Product compatibility | Plug-in relay RXM with 2 C/O contact | Plug-in relay RXM with 4 C/O contact | Plug-in relay REXL with 2 C/O contact | Plug-in relay REXL with 4 C/O contact | Plug-in relay 782H with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 10 A |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| [Ue] rated operational voltage | < 250 V conforming to IEC | < 300 V conforming to UL |
| Connections - terminals | Screw clamp terminals, 1 x 0.34...1 x 1 mm² (AWG 22...AWG 17) flexible with cable end | Screw clamp terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end | Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end | Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Shape of pin | Flat |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) | Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 8 mm |
| Contact terminal arrangement | Mixed |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 30 mm |
| Net weight | 0.051 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | UL | CSA | Lloyd's |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.600 cm |
| Package 1 Width | 3.100 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 56.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.600 cm |
| Package 2 Width | 8.900 cm |
| Package 2 Length | 15.500 cm |
| Package 2 Weight | 600.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 12.449 kg |
