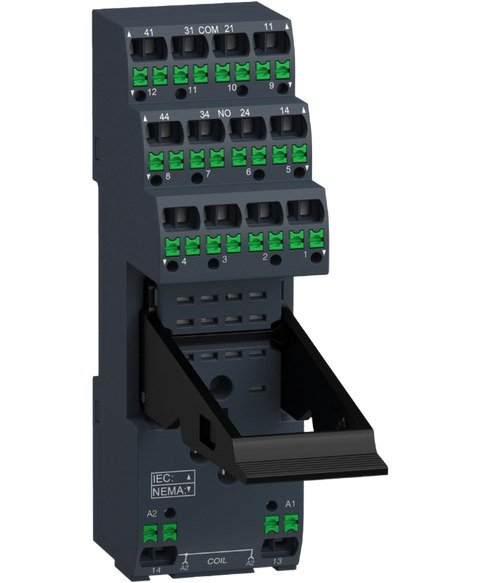

Schneider Electric RXZE14P
Relay socket, 14pin, 250v, DIN rail; socket mounting:DIN rail; socket terminals:spring clamp; NO. of pins:14pins; current rating:-; voltage rating:250v; product range:harmony rxz series rohs compliant: yes
This Schneider Electric RXZE14P is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Sockets range and is referenced internally as PartLogic SKU PL26805667666.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Electromechanical Relays | Harmony Timer Relays |
| Product compatibility | Plug-in relay RXM with 2 C/O contact | Plug-in relay RXM with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 12 A 2 C/O relays | 6 A 4 C/O relays |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| [Ui] rated insulation voltage | 250 V |
| [Ue] rated operational voltage | 250 V conforming to IEC | 300 V conforming to UL |
| Connections - terminals | Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end | Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Shape of pin | Flat |
| Fixing mode | Clip-on (35 mm symmetrical DIN rail) |
| Length | 98 mm |
| Contact terminal arrangement | Separate |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 31 mm |
| Height | 85 mm |
| Net weight | 0.080 kg |
| IP degree of protection | IP20 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | CSA | Lloyd's | UL | EAC |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 7.800 cm |
| Package 1 Length | 9.900 cm |
| Package 1 Weight | 72.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.200 cm |
| Package 2 Width | 16.200 cm |
| Package 2 Length | 20.700 cm |
| Package 2 Weight | 828.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 70 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 6.360 kg |
