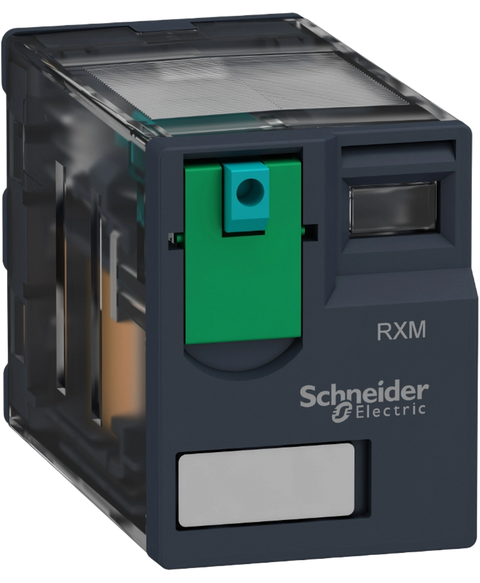

Schneider Electric RXM4AB1FD
Plug-in relay, miniature, 4 co, 110VDC control circuit, 250 v IEC, 300 v csa, 300 v ul, 6 amps, 2.5 kva 1.2,50 us, 1500 va,168W maximum switching capacity
This Schneider Electric RXM4AB1FD is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Zelio relays range and is referenced internally as PartLogic SKU PL26805681233.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Electromechanical Relays |
| Series name | RXM series |
| Product or component type | Plug-in relay |
| Relay type | Miniature relay |
| Contacts type and composition | 4 C/O |
| status LED | Without |
| Control type | Lockable test button |
| [Uc] control circuit voltage | 110 V DC |
| [Ithe] conventional enclosed thermal current | 6 A |
| Continuous output current | 5 A |
| [Uimp] rated impulse withstand voltage | 2.5 kV during 1.2/50 µs |
| [Ie] rated operational current | 3 A at 28 V (DC) NC conforming to IEC | 3 A at 250 V (AC) NC conforming to IEC | 6 A at 28 V (DC) NO conforming to IEC | 6 A at 250 V (AC) NO conforming to IEC | 6 A at 277 V (AC) conforming to UL | 8 A at 30 V (DC) conforming to UL |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Electrical durability | 100000 cycles for resistive load |
| Rated operational voltage limits | 88...121 V DC |
| [Ui] rated insulation voltage | 250 V conforming to IEC | 300 V conforming to CSA | 300 V conforming to UL |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.1 Uc |
| Load current | 6 A at 250 V AC | 6 A at 28 V DC |
| Operating time | 20 ms |
| Maximum switching capacity | 1500 VA/168 W |
| Average resistance | 13440 Ohm at 20 °C +/- 10 % |
| Average coil consumption | 0.9 W |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load | <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| CAD overall height | 79 mm |
| CAD overall depth | 78.45 mm |
| reset time | 20 ms |
| Dielectric strength | 1300 V AC between contacts with micro disconnection | 2000 V AC between coil and contact with basic insulation | 2000 V AC between poles with basic insulation |
| Compatibility code | RXM |
| Protection category | RT I |
| Pollution degree | 2 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Net weight | 0.037 kg |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Standards | IEC 61810-1 | CSA C22.2 No 14 | UL 508 |
| Product certifications | UL | Lloyd's | CE | CSA | GOST | IECEE CB Scheme |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation | 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 10 gn for in operation | 30 gn for not operating |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 2.700 cm |
| Package 1 Length | 4.300 cm |
| Package 1 Weight | 36.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.100 cm |
| Package 2 Width | 10.300 cm |
| Package 2 Length | 13.000 cm |
| Package 2 Weight | 389.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 9.885 kg |
