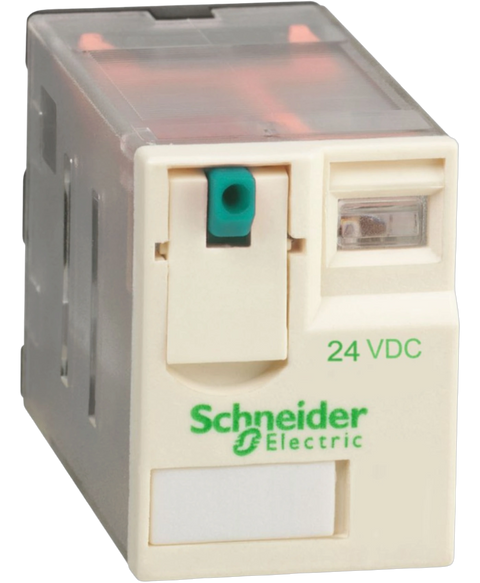

Schneider Electric RXM4AB1BD
Harmony, Miniature plug-in relay, 6 A, 4 CO, with lockable test button, 24 V DC
This Schneider Electric RXM4AB1BD is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Zelio relays range and is referenced internally as PartLogic SKU PL26801735666.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Power | 1.5 W |
| Coil Resistance | 650 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 6 A |
| Contact Material | Silver |
| Contact Resistance | 100 mΩ |
| Current Rating | 6 A |
| Height | 40 mm |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Mount | DIN Rail, PCB |
| Power Consumption | 1.1 W |
| REACH SVHC | Unknown |
| Relay Type | General Purpose |
| RoHS | Compliant |
| Termination | Plug |
| Throw Configuration | 4PDT |
| Width | 21 mm |
