Schneider Electric RXG22BD

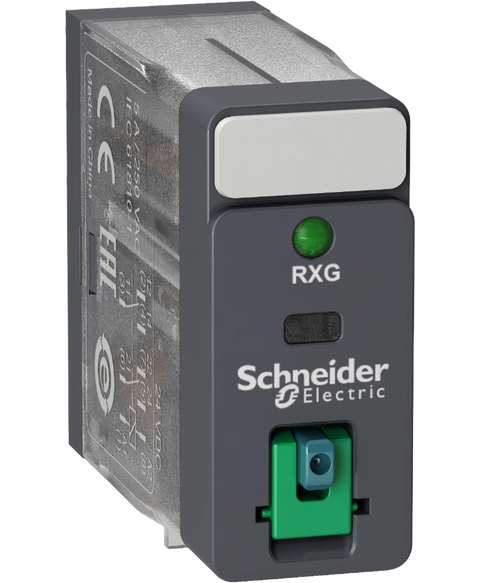

Interface plug-in relay, 5A, 24VDC, 2 co, lockable test button, led, non-latching
This Schneider Electric RXG22BD is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Zelio relays range and is referenced internally as PartLogic SKU PL26904516577.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Electromechanical Relays |
| Series name | RXG series |
| Product or component type | Plug-in relay |
| Relay type | Interface relay |
| Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| Local signalling | Flag |
| status LED | With |
| Electrical durability | 100000 cycles for NO resistive load at 55 °C | 100000 cycles for NC resistive load at 55 °C |
| [Ui] rated insulation voltage | 250 V conforming to IEC | 300 V conforming to CSA | 300 V conforming to UL |
| Removable legend | With |
| Maximum switching voltage | 250 V AC | 30 V DC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| [Ie] rated operational current | 5 A at 30 V (DC) conforming to UL | 5 A at 30 V (DC) conforming to IEC | 5 A at 250 V (AC) conforming to UL | 5 A at 250 V (AC) conforming to IEC |
| Load current | 5 A at 250 V AC |
| Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| Maximum switching capacity | 1250 VA |
| Control type | Lockable test button |
| Average resistance | 1100 Ohm at 23 °C +/- 10 % |
| Contact resistance | 100 mOhm |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Electrical insulation class | Class F |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1800 cycles/hour under load | <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Operating time | 20 ms |
| reset time | 20 ms |
| Dielectric strength | 1000 V AC between contacts with micro disconnection | 5000 V AC between coil and contact with reinforced insulation | 3000 V AC between poles with basic insulation | 1300 V AC terminals and case with basic insulation |
| [Uimp] rated impulse withstand voltage | 1200 V AC between contacts with micro disconnection | 6000 V between coil and contact with reinforced insulation | 1500 V between terminals and case with basic insulation | 4000 V between poles with basic insulation |
| Overvoltage category | III |
| Protection category | RT I |
| Pollution degree | 2 |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver alloy (AgSnO2In2O3) |
| Shape of pin | Flat (faston type) |
| Net weight | 0.02 kg |
| Standards | CSA C22.2 No 14 | UL 508 | IEC 61810-1 |
| Product certifications | CSA | CE | EAC | UL | DNV |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP40 |
| Relative humidity | 10…85 % |
| Vibration resistance | 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation | 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.200 cm |
| Package 1 Width | 3.000 cm |
| Package 1 Length | 3.900 cm |
| Package 1 Weight | 20.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.500 cm |
| Package 2 Width | 8.200 cm |
| Package 2 Length | 9.200 cm |
| Package 2 Weight | 230.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 380 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 8.869 kg |
