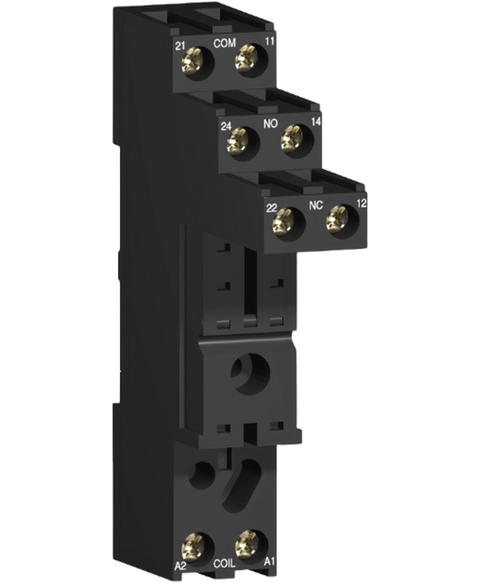

Schneider Electric RSZE1S48M
Plug-in relay, electric, 10A, 250VAC, for use with plug-in relay rsb with 1 c,o, plug-in relay rsb with 2 c,o, screw type terminal, DIN rail mount, -40 to +85 degrees c, IP20
This Schneider Electric RSZE1S48M is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Sockets range and is referenced internally as PartLogic SKU PL26805670038.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Electromechanical Relays |
| Device short name | RSZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RSB with 1 C/O contact at 16 A | Plug-in relay RSB with 2 C/O contact at 8 A |
| Contacts type and composition | 2 C/O |
| [Ith] conventional free air thermal current | 10 A |
| Shape of pin | Flat |
| [Ue] rated operational voltage | < 250 V AC |
| Contact terminal arrangement | Separate |
| Connections - terminals | Screw connectors, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end | Screw connectors, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end | Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Tightening torque | < 0.8 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) | Clip-on (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 15.5 mm |
| Net weight | 0.05 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 61984 |
| Product certifications | CSA | UL |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.700 cm |
| Package 1 Width | 6.200 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 39.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.000 cm |
| Package 2 Width | 9.000 cm |
| Package 2 Length | 17.000 cm |
| Package 2 Weight | 428.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 10.575 kg |
