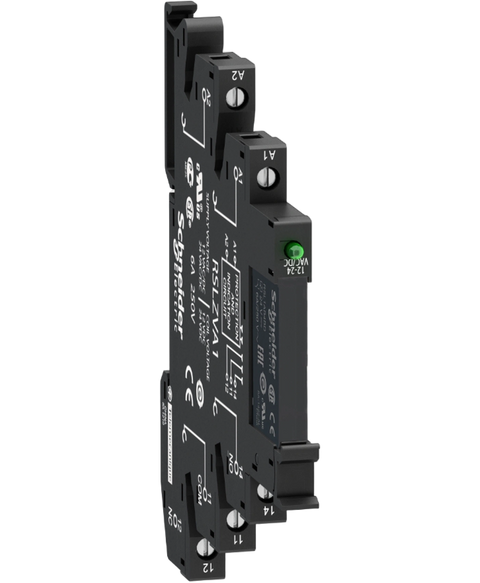

Schneider Electric RSL1PVBU
Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 24 V AC
This Schneider Electric RSL1PVBU is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Zelio relays range and is referenced internally as PartLogic SKU PL26805525389.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Electromechanical Relays |
| Series name | RSL series |
| Product or component type | Pre-assembled plug-in relay with socket |
| Relay type | Slim interface relay |
| Contact operation | Standard |
| Contacts type and composition | 1 C/O |
| status LED | With |
| [Uc] control circuit voltage | 24 V AC/DC |
| [Ithe] conventional enclosed thermal current | 6 A at -40…55 °C |
| fixing mode | Plastic compression spring |
| Average resistance | 3390 Ohm network: DC at 23 °C +/- 10 % |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC |
| [Ie] rated operational current | 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL |
| minimum switching current | 100 mA |
| Minimum switching voltage | 12 V |
| [Ui] rated insulation voltage | 250 V conforming to IEC | 277 V conforming to cUL |
| Minimum switching capacity | 120 mW |
| Maximum switching voltage | 277 V |
| Drop-out voltage threshold | >= 0.05 Uc |
| Load current | 6 A at 250 V AC 0.5 mm mounting distance |
| Electrical durability | 60000 cycles for resistive load, 6 A at 250 V, AC-1 |
| Maximum switching capacity | 1500 VA | 150 W |
| Operating time | 5 ms reset | 12 ms |
| Terminals description ISO n°1 | (A1-A2)CO | (11-12-14)OC |
| Average coil consumption | 0.17 W, DC |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 60000 |
| Operating rate | <= 18000 cycles/hour no-load | <= 360 cycles/hour under load |
| Tightening torque | < 0.5 N.m for M2.5 screw(s) |
| Control type | Without lockable test button |
| Compatibility code | RSL |
| Contact terminal arrangement | Separate |
| Connections - terminals | Screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end | Screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end |
| Protection category | RT III |
| Mounting support | 35 mm symmetrical DIN rail |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Sale per indivisible quantity | 10 |
| Contacts material | Silver alloy (AgSnO2) |
| Shape of pin | Flat (PCB type) |
| Width | 6.2 mm |
| Height | 78.6 mm |
| Depth | 95 mm |
| Net weight | 0.029 kg |
| Input voltage | 24 V AC/DC (input voltage limit: 21.6...28.8 V) |
| Dielectric strength | 1000 V AC between contacts | 4000 V AC between coil and contact |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40…55 °C |
| Standards | CSA C22.2 No 14 | UL 508 | IEC 61810-1 |
| Product certifications | UL | GOST | CSA |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles not operating conforming to IEC 60068-2-6 | 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles in operation conforming to IEC 60068-2-6 |
| Shock resistance | 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 | 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.700 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 9.800 cm |
| Package 1 Weight | 29.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.300 cm |
| Package 2 Width | 8.700 cm |
| Package 2 Length | 10.600 cm |
| Package 2 Weight | 314.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 9.918 kg |
