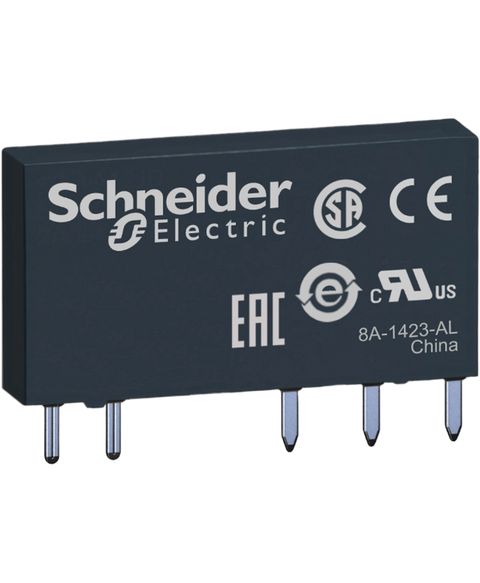

Schneider Electric RSL1AB4BD
Relay, 5 pin through hole mount, coil voltage 24VDC, contact rating 250v,6A, spdt, led status indicator
This Schneider Electric RSL1AB4BD is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Zelio relays range and is referenced internally as PartLogic SKU PL26801408016.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Electromechanical Relays |
| Series name | RSL series |
| Product or component type | Plug-in relay |
| Relay type | Slim interface relay |
| Contact operation | Standard |
| Contacts type and composition | 1 C/O |
| Control type | Without lockable test button |
| status LED | Without |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 6 A at -40…55 °C |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC |
| [Ie] rated operational current | 6 A (AC-1/DC-1) conforming to IEC/UL |
| minimum switching current | 100 mA |
| Minimum switching voltage | 12 V |
| Minimum switching capacity | 120 mW |
| Rated operational voltage limits | 18...33.6 V DC |
| [Ui] rated insulation voltage | 250 V conforming to IEC | 277 V conforming to cUL |
| Operating time | 5 ms reset | 12 ms |
| Maximum switching voltage | 277 V |
| Drop-out voltage threshold | >= 0.05 Uc |
| Load current | 6 A at 250 V AC 0.5 mm mounting distance |
| Maximum switching capacity | 1500 VA | 150 W |
| Terminals description ISO n°1 | (11-12-14)OC | (A1-A2)CO |
| Average resistance | 3390 Ohm at 23 °C +/- 15 % |
| Average coil consumption | 0.17 W |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 60000 cycles, 6 A at 250 V, AC-1 C/O |
| Safety reliability data | B10d = 60000 |
| Operating rate | <= 360 cycles/hour under load | <= 18000 cycles/hour no-load |
| Protection category | RT III |
| Mounting support | Socket or PCB |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver alloy (AgSnO2) |
| Shape of pin | Flat (PCB type) |
| Width | 5 mm |
| Height | 28 mm |
| Depth | 18.5 mm |
| Net weight | 0.0054 kg |
| Dielectric strength | 1000 V AC between contacts | 4000 V AC between coil and contact |
| Vibration resistance | +/- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40…55 °C |
| Standards | CSA C22.2 No 14 | IEC 61810-1 | UL 508 |
| Product certifications | CSA | UL | EAC |
| Ambient air temperature for storage | -40…70 °C |
| Shock resistance | 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 | 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.500 cm |
| Package 1 Width | 1.500 cm |
| Package 1 Length | 2.800 cm |
| Package 1 Weight | 5.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 0.700 cm |
| Package 2 Width | 2.400 cm |
| Package 2 Length | 30.500 cm |
| Package 2 Weight | 70.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 500 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.913 kg |
