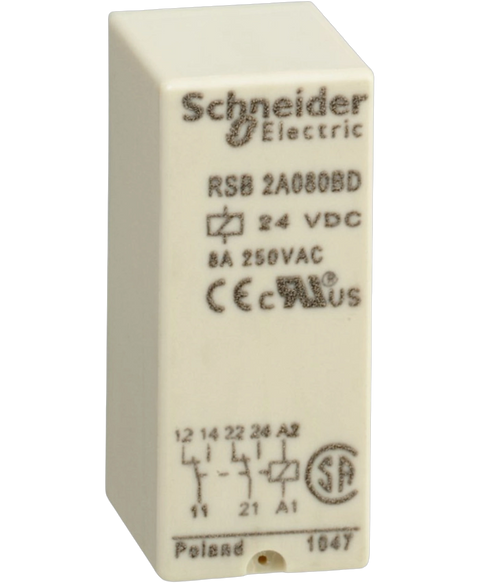

Schneider Electric RSB2A080BD (5 Pack)
Schneider Electric RSB interface relay, DPDT, 24VDC, 8A.
This Schneider Electric RSB2A080BD (5 Pack) is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Zelio relays range and is referenced internally as PartLogic SKU PL26805523441.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Coil Resistance | 1.44 kΩ |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 8 A |
| Contact Material | Silver |
| Contact Resistance | 100 mΩ |
| Height | 15.7 mm |
| Input Current | 4 A |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Mount | PCB |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Termination | Through Hole |
| Throw Configuration | DPDT |
| Turn-On Delay Time | 12 ms |
| Width | 12.5 mm |
