Schneider Electric RSB2A080BD

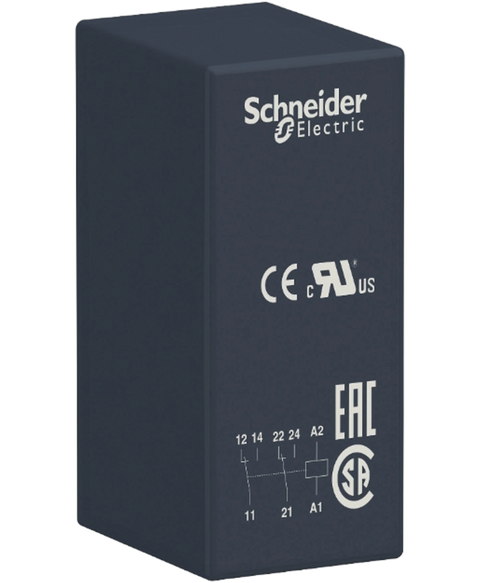

Interface plug-in relay, 8A, 24VDC, 2 co, NO led
This Schneider Electric RSB2A080BD is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Zelio relays range and is referenced internally as PartLogic SKU PL26805673403.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Electromechanical Relays |
| Series name | RSB series |
| Product or component type | Plug-in relay |
| Relay type | Interface relay |
| Contacts type and composition | 2 C/O |
| status LED | Without |
| [Uc] control circuit voltage | 24 V DC |
| Control type | Without lockable test button |
| [Ithe] conventional enclosed thermal current | 8 A at -40…40 °C |
| Average resistance | 1440 Ohm network: DC at 20 °C +/- 10 % |
| [Ue] rated operational voltage | 19.2...26.4 V DC |
| [Uimp] rated impulse withstand voltage | 3.6 kV conforming to IEC 61000-4-5 |
| [Ie] rated operational current | 4 A (AC-1/DC-1) NC conforming to IEC | 8 A (AC-1/DC-1) NO conforming to IEC |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60947 |
| Maximum switching voltage | 300 V DC conforming to IEC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Load current | 8 A at 250 V AC | 8 A at 28 V DC |
| minimum switching current | 10 mA |
| Maximum switching capacity | 2000 VA/224 W |
| minimum switching voltage | 12 V |
| Minimum switching capacity | 120 mW at 10 mA, 12 V |
| Operating time | 20 ms operating | 20 ms reset |
| Mechanical durability | 30000000 cycles |
| Electrical durability | 100000 cycles, 8 A at 250 V, AC-1 NO | 100000 cycles, 4 A at 250 V, AC-1 NC |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 600 cycles/hour under load | <= 18000 cycles/hour no-load |
| Average coil consumption | 0.45 W DC |
| Removable legend | Without |
| Protection category | RT I |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Sale per indivisible quantity | 10 |
| Contacts material | Silver alloy (AgNi) |
| Shape of pin | Flat (PCB type) |
| Net weight | 0.014 kg |
| Compatibility code | RSB |
| Dielectric strength | 1000 V AC between contacts | 2500 V AC between poles | 5000 V AC between coil and contact |
| Vibration resistance | +/- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40…85 °C (DC) |
| Standards | UL 508 | CSA C22.2 No 14 | IEC 61810-1 |
| Product certifications | UL | CSA | EAC |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Shock resistance | 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 | 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.800 cm |
| Package 1 Width | 2.100 cm |
| Package 1 Length | 3.000 cm |
| Package 1 Weight | 13.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 1.600 cm |
| Package 2 Width | 2.900 cm |
| Package 2 Length | 33.000 cm |
| Package 2 Weight | 143.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 350 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.050 kg |
