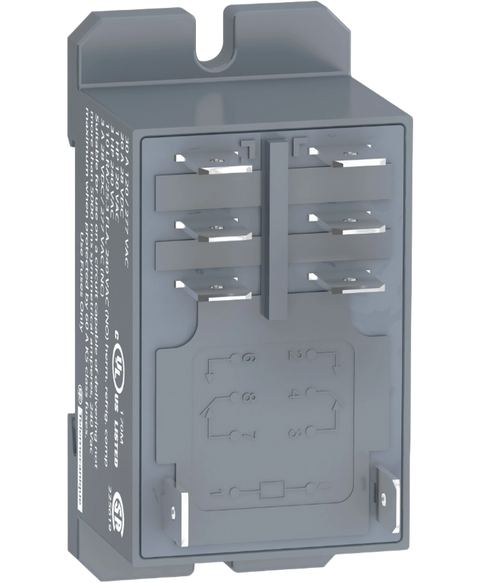

Schneider Electric RPF2BJD
Power relay, Harmony, DIN rail or panel mount relay, 30A, 2CO, 12V DC
This Schneider Electric RPF2BJD is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Power relays range and is referenced internally as PartLogic SKU PL26923450523.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Electromechanical Relays |
| Series name | RPF series |
| Product or component type | DIN rail/panel mount relay |
| Contacts type and composition | 2 C/O |
| Relay type | Power relay |
| [Uc] control circuit voltage | 12 V DC |
| status LED | Without |
| Control type | Without lockable test button |
| [Ithe] conventional enclosed thermal current | 25 A at -40…55 °C relays side by side without a gap | 30 A at -40…55 °C 13 mm gap between two relays |
| Control circuit voltage limits | 9.6...13.2 V |
| [Ie] rated operational current | 30 A at 277 V (AC) NO conforming to UL | 20 A at 28 V (DC) NO conforming to UL | 30 A at 250 V (AC) NO conforming to IEC | 25 A at 28 V (DC) NO conforming to IEC | 3 A at 277 V (AC) NC conforming to UL | 3 A at 28 V (DC) NC conforming to UL | 3 A at 250 V (AC) NC conforming to IEC | 3 A at 28 V (DC) NC conforming to IEC |
| Average consumption | 1.7 W |
| CAD overall width | 33.7 mm |
| CAD overall height | 68.5 mm |
| CAD overall depth | 39.2 mm |
| Compatibility code | RPF |
| [Ui] rated insulation voltage | 250 V conforming to IEC | 300 V conforming to UL |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.1 Uc |
| minimum switching current | 500 mA |
| Maximum switching capacity | 7500 VA/700 W |
| Average resistance | 86 Ohm at 20 °C +/- 10 % |
| Mechanical durability | 5000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load | <= 18000 cycles/hour no-load |
| Utilisation coefficient | 10 % |
| Dielectric strength | 2000 V AC between poles with basic | 4000 V AC between coil and contact with reinforced | 1500 V AC between contacts with micro disconnection |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Protection category | RT II |
| Pollution degree | 3 |
| Mounting support | DIN rail | Panel |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver tin oxide |
| Shape of pin | Flat (faston type) |
| Net weight | 0.082 kg |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Standards | UL 508 | CSA C22.2 No 14 | IEC 61810-1 |
| Product certifications | CE | CSA | GOST | UL |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation | 10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 10 gn for in operation | 30 gn for not operating |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.200 cm |
| Package 1 Width | 3.500 cm |
| Package 1 Length | 6.900 cm |
| Package 1 Weight | 83.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 5.000 cm |
| Package 2 Length | 20.000 cm |
| Package 2 Weight | 907.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.925 kg |
