Schneider Electric RMCA61BD

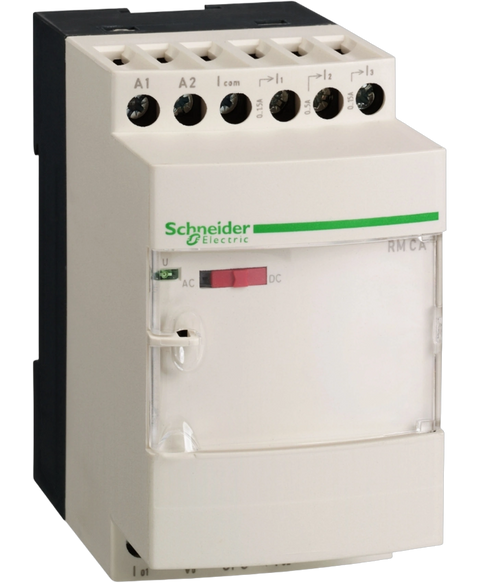

Isolated analog converter, harmony analog, 0...15A current to 0...10v, 4...20mA, ac and dc signals, 24v dc supply voltage, led green light
This Schneider Electric RMCA61BD is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Monitoring relays range and is referenced internally as PartLogic SKU PL26928096546.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Analog |
| Product or component type | Voltage/current converter |
| Analogue input type | Current 0...1.5 A AC/DC 50/60 Hz | Current 0...15 A AC/DC 50/60 Hz | Current 0...5 A AC/DC 50/60 Hz |
| Analogue output type | Current 0...20 mA <= 500 Ohm by cabling | Current 4...20 mA <= 500 Ohm by cabling | Voltage 0...10 V >= 100 kOhm by cabling |
| Protection type | Reverse polarity protection on output | Short-circuit protection on output | Overvoltage protection on output (+/- 30 V) |
| abnormal analogue output voltage | -15...0 V no input or input wire broken |
| abnormal analogue output current | -30…0 mA, output selected 0...20 mA no input or input wire broken | 4…30 mA, output selected 4...20 mA no input or input wire broken |
| [Us] rated supply voltage | 24 V DC +/- 20 %, isolated |
| Current consumption | <= 70 mA for voltage output | <= 90 mA for current output |
| Local signalling | LED (green) for power ON |
| tightening torque | 0.6…1.1 N.m |
| Marking | CE |
| Surge withstand | 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5 |
| [Ui] rated insulation voltage | 2 kV |
| Fixing mode | By screws (mounting plate) | Clip-on (35 mm symmetrical DIN rail) |
| Safety reliability data | B10d = 22108 | MTTFd = 23.9 years |
| Net weight | 0.15 kg |
| Standards | IEC 60947-1 | IEC 60584-1 |
| Product certifications | CSA | UL | GL |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 | 850 °C conforming to UL |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10…100 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 6 kV (in contact) conforming to IEC 61000-4-2 level 3 | 8 kV (in air) conforming to IEC 61000-4-2 level 3 |
| Resistance to fast transients | 1 kV (on input-output) conforming to IEC 61000-4-4 | 2 kV (on power supply) conforming to IEC 61000-4-4 |
| Disturbance radiated/conducted | CISPR 11 | CISPR 22 group 1 - class B |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…50 °C mounting side by side | 0…60 °C 2 cm spacing |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.400 cm |
| Package 1 Width | 4.700 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 175.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 33 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.100 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 528 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 106.000 kg |
