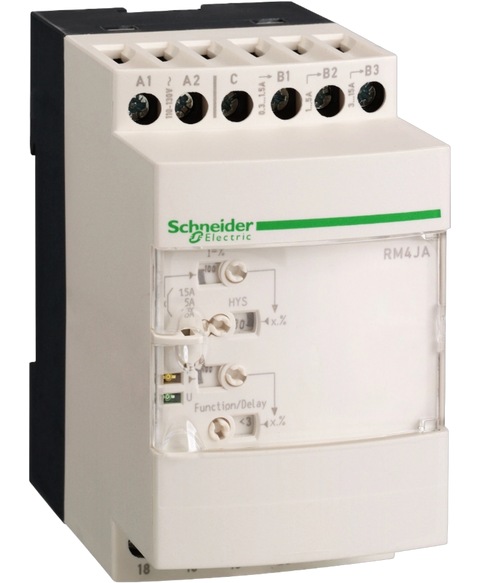

Schneider Electric RM4JA32F
Discontinued by manufacturer, current relay, 1.5A, 110-130v, 50,60Hz, replaced by rm35ja32mr
This Schneider Electric RM4JA32F is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Monitoring relays range and is referenced internally as PartLogic SKU PL26805525820.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$571.26
(AUD)
In Stock
| Range of product | Harmony Relay |
| Relay type | Current measurement relay |
| Product or component type | Industrial measurement and control relays |
| Relay name | RM4J |
| Relay monitored parameters | Overcurrent or undercurrent detection |
| Time delay type | Adjustable 0.05...30 s |
| Maximum power consumption in VA | 3.3 VA AC |
| Measurement range | 1...5 A current AC | 1...5 A current DC | 3...15 A current AC | 3...15 A current DC | 300...1500 mA current AC | 300...1500 mA current DC |
| Contacts type and composition | 2 C/O |
| Maximum switching voltage | 440 V AC |
| operating voltage tolerance | 0.85...1.1 Uc |
| Output contacts | 2 C/O |
| Maximum measuring cycle | 80 ms |
| Internal input resistance | 0.02 Ohm | 0.06 Ohm | 0.006 Ohm |
| Permissible continuous overload | 2 A | 20 A | 7 A |
| Permissible non repetitive overload | 10 A for <= 3 s | 100 A | 15 A |
| Setting accuracy of the switching threshold | +/-5 % |
| Switching threshold drift | <= 0.06 % per degree centigrade depending permissible ambient air temperature | <= 0.5 % within the supply voltage range (0.85...1.1 Un) |
| Setting accuracy of time delay | 10 P |
| Time delay drift | <= 0.07 % per degree centigrade depending on temperature | <= 0.5 % within the supply voltage range (0.85...1.1 Un) |
| Hysteresis | 5…30 % adjustable of current threshold setting |
| Marking | CE : EMC 89/336/EEC | CE : LVD 73/23/EEC |
| Overvoltage category | III conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 500 V conforming to IEC |
| Supply disconnection value | > 0.1 Uc |
| Operating position | Any position without derating |
| Connections - terminals | Screw terminals, 2 x 1.5 mm²flexible with cable end | Screw terminals, 2 x 2.5 mm²flexible without cable end |
| Tightening torque | 0.6…1.1 N.m |
| Mechanical durability | 30000000 cycles |
| [Ith] conventional free air thermal current | 8 A |
| [Ie] rated operational current | 2 A at 24 V DC-13 conforming to IEC 60947-5-1/1991 70 °C | 2 A at 24 V DC-13 conforming to VDE 0660 70 °C | 3 A at 115 V AC-15 conforming to IEC 60947-5-1/1991 70 °C | 3 A at 115 V AC-15 conforming to VDE 0660 70 °C | 3 A at 24 V AC-15 conforming to IEC 60947-5-1/1991 70 °C | 3 A at 24 V AC-15 conforming to VDE 0660 70 °C | 3 A at 250 V AC-15 conforming to IEC 60947-5-1/1991 70 °C | 3 A at 250 V AC-15 conforming to VDE 0660 70 °C | 0.1 A at 250 V DC-13 conforming to IEC 60947-5-1/1991 70 °C | 0.1 A at 250 V DC-13 conforming to VDE 0660 70 °C | 0.3 A at 115 V DC-13 conforming to IEC 60947-5-1/1991 70 °C | 0.3 A at 115 V DC-13 conforming to VDE 0660 70 °C |
| Switching capacity in mA | 10 mA at 12 V |
| Switching voltage | 250 V AC |
| Contacts material | 90/10 silver nickel contacts |
| Number of cables | 2 |
| Width | 45 mm |
| Height | 78 mm |
| Depth | 80 mm |
| Terminals description ISO n°1 | (15-16-18)OC | (C-B1-B2-B3)CO | (A1-A2)CO | (25-26-28)OC |
| Output relay state | Tripped if A measured > A set | Tripped if V measured > V set |
| 9 mm pitches | 5 |
| Net weight | 0.204 kg |
| Electromagnetic compatibility | Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 | Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 |
| Standards | EN/IEC 60255-6 |
| Product certifications | GL | CSA | UL |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -20…65 °C |
| Environmental characteristic | 3K3 |
| Relative humidity | 15…85 % conforming to IEC 60721-3-3 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP50 (casing) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Dielectric test voltage | 2.5 kV |
| Non-dissipating shock wave | 4.8 kV |
| Resistance to electrostatic discharge | 6 kV contact conforming to IEC 61000-4-2 level 3 | 8 kV air conforming to IEC 61000-4-2 level 3 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| Protection against electric shocks | 2 kV: level 3 conforming to IEC 61000-4-5 |
| Disturbance radiated/conducted | CISPR 22 - class A | CISPR 11 group 1 - class A |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
