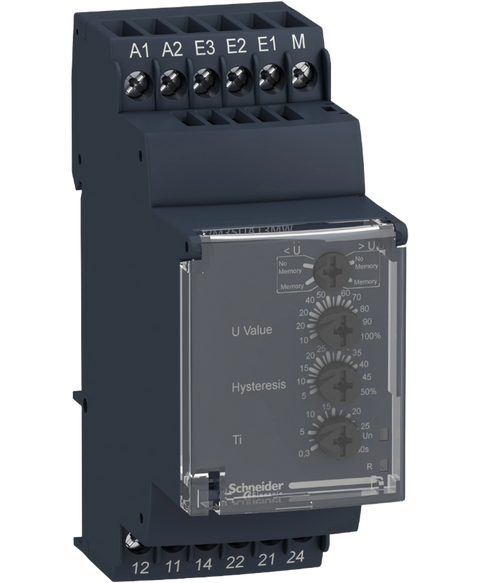

Schneider Electric RM35UA13MW
Voltage sensing relay, multifunction, 15-600VAC,dc measurement range, 250VAC,dc maximum switching voltage, 5A maximum switching current, 1250 va switching capacity, 0.3-30s adjustable time delay, 40-70Hz, 2 c,o, IP20,30
This Schneider Electric RM35UA13MW is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Monitoring relays range and is referenced internally as PartLogic SKU PL26805681391.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$389.82
(inc. GST)
In Stock
| Range of product | Harmony Control Relays |
| Relay type | Multifunction voltage control relay |
| Product or component type | Voltage control relay |
| Relay name | RM35UA |
| Relay monitored parameters | Overvoltage or undervoltage detection |
| time delay | Adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault |
| Switching capacity in VA | 1250 VA |
| Measurement range | 15...600 V AC/DC |
| Contacts type and composition | 2 C/O |
| Reset time | 1500 ms time delay |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 5 A AC/DC |
| operating voltage tolerance | - 15 % + 10 % Un |
| Supply voltage limits | 20.4…264 V AC/DC |
| Power consumption in VA | 0…3.5 VA AC |
| Maximum power consumption in W | 0.6 W DC |
| Control circuit frequency | 40...70 Hz +/- 10 % |
| Immunity to microbreaks | 10 ms |
| Resistance across terminals | 150 mOhm at E1-M terminals | 300 mOhm at E2-M terminals | 600 mOhm at E3-M terminals |
| Output contacts | 2 C/O |
| nominal output current | 5 A |
| Hysteresis | 5…50 % of threshold setting |
| Measurement accuracy | +/- 10 % of the full scale value |
| Polarity | Non reversible polarity on DC supply |
| delay at power up | 600 ms |
| Maximum measuring cycle | 30 ms measurement cycle as true rms value |
| Repeat accuracy | +/- 0.5 % for input and measurement circuit | +/- 2 % for time delay |
| Measurement error | +/- 0.05 %/°C with temperature variation | < 1 % over the whole range with voltage variation |
| Sensitivity scale | 15...150 V E1-M terminals | 30...300 V E2-M terminals | 60...600 V E3-M terminals |
| Threshold setting | 10...100 % |
| Quality labels | CE |
| Insulation resistance | > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5 | > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1 | > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5 | > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1 | > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5 | > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 |
| Operating position | Any position without derating |
| Local signalling | LED (green) for power ON | LED (yellow) for relay ON |
| Overvoltage category | III conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 | 600 V conforming to IEC 60664-1 |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end | Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | Screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end | Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| Utilisation category | AC-12 conforming to IEC 60947-5-1 | AC-13 conforming to IEC 60947-5-1 | AC-14 conforming to IEC 60947-5-1 | AC-15 conforming to IEC 60947-5-1 | DC-12 conforming to IEC 60947-5-1 | DC-13 conforming to IEC 60947-5-1 | DC-14 conforming to IEC 60947-5-1 |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Safety reliability data | B10d = 290000 | MTTFd = 308.2 years |
| Control type | Without test button |
| Width | 35 mm |
| Net weight | 0.08 kg |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 | Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 | Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
| Ambient air temperature for operation | -20…50 °C |
| Vibration resistance | 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6 | 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1 |
| Shock resistance | 5 gn conforming to IEC 60068-2-27 |
| Standards | IEC 60255-6 |
| Product certifications | GOST | UL | GL | C-Tick | CSA |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 95 % at 55 °C conforming to IEC 60068-2-30 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP30 (casing) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Directives | 73/23/EEC - low voltage directive | 89/336/EEC - electromagnetic compatibility |
| Dielectric test voltage | 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5 | 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 |
| Non-dissipating shock wave | 4 kV conforming to IEC 60255-5 | 4 kV conforming to IEC 60664-1 | 4 kV conforming to IEC 61000-4-5 |
