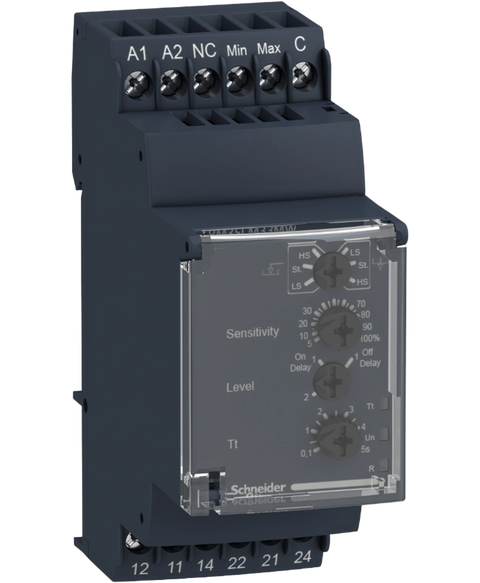

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric RM35LM33MW
Liquid level control relay, 250VAC,dc, 5A, rm35, 1250va, 10mA @ 5VDC, 1750ms reset time
This Schneider Electric RM35LM33MW is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Monitoring relays range and is referenced internally as PartLogic SKU PL26805570928.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$252.31
(inc. GST)
In Stock
| Range of product | Harmony Control Relays |
| Relay type | Level control relay |
| Product or component type | Level control relay |
| Relay name | RM35L |
| Relay monitored parameters | Detection by resistive probes |
| time delay | Adjustable 0.1...5 s, +/- 10 % Tt- time delay upon fault |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 5 A AC/DC |
| power consumption | 5 VA AC |
| Measurement range | 250 Ohm...1 MOhm |
| Utilisation category | AC-12 conforming to IEC 60947-5-1 | AC-13 conforming to IEC 60947-5-1 | AC-14 conforming to IEC 60947-5-1 | AC-15 conforming to IEC 60947-5-1 | DC-12 conforming to IEC 60947-5-1 | DC-13 conforming to IEC 60947-5-1 |
| Contacts type and composition | 2 C/O |
| reset time | 1750 ms |
| Maximum switching voltage | 250 V AC/DC |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Supply voltage limits | 20.4…264 V AC/DC |
| operating voltage tolerance | - 15 % + 10 % Un |
| Output contacts | 2 C/O |
| nominal output current | 5 A |
| delay at power up | 0.6 s |
| Measurement accuracy | +/- 10 % of the full scale value | +/- 20 % for the HS range |
| Repeat accuracy | +/- 2 % for time delay |
| Measurement error | 0.5 %/°C with temperature variation |
| Maximum cable distance between devices | 100 m |
| Sensitivity scale | 0.25...5 kOhm LS (Low Sensitivity) | 5...100 kOhm St (Standard Sensitivity) | 50...1000 kOhm HS (High Sensitivity) |
| Sensitivity adjustment | 5…100 % |
| Maximum supply current for sensors | 1 mA |
| Cable capacitance | 1 nF at HS (High Sensitivity) for probe cable | 2.2 nF at St (Standard Sensitivity) for probe cable | 4.7 nF at LS (Low Sensitivity) |
| Marking | CE : 73/23/EEC | CE : EMC 89/336/EEC |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5 | > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1 | > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5 | > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1 | > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5 | > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| Operating position | Any position without derating |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end | Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Local signalling | LED (yellow) for relay ON | LED (green) for power ON | LED (yellow) for timer ON |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| Safety reliability data | B10d = 170000 | MTTFd = 182.6 years |
| Width | 35 mm |
| Control type | Without test button |
| Immunity to microbreaks | 100 ms DC | 90 ms AC |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 | Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 | Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
| Standards | IEC 60255-6 |
| Product certifications | CSA | GL | UL | C-Tick | GOST |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 95 % at 55 °C conforming to IEC 60068-2-30 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP30 (casing) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Dielectric test voltage | 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5 | 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.400 cm |
| Package 1 Width | 7.800 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 134.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.155 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 65.660 kg |
