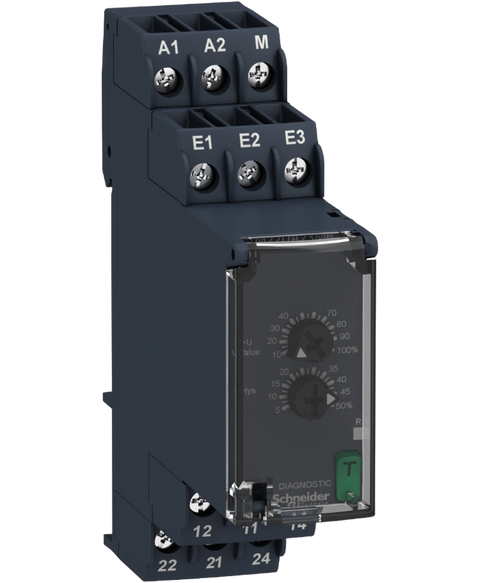

Schneider Electric RM22UA23MR
Voltage sensing relay, dpdt, 8A, 250v; product range:zelio rm22ua series; contact configuration:dpdt; contact current:8A; relay mounting:DIN rail; contact voltage V AC:250v; relay terminals:screw; contact voltage V DC:- rohs compliant: yes
This Schneider Electric RM22UA23MR is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Monitoring relays range and is referenced internally as PartLogic SKU PL26805564612.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$350.12
(inc. GST)
In Stock
| Range of product | Harmony Control Relays |
| Relay type | Voltage control relay |
| Product or component type | Voltage control relay |
| Network number of phases | 1 phase |
| Supply circuit type | DC |
| Relay name | RM22UA |
| Relay monitored parameters | Overvoltage detection |
| time delay | Without |
| Switching capacity in VA | 2000 VA |
| Measurement range | 15...500 V AC/DC |
| Contacts type and composition | 2 C/O |
| Reset time | 1500 ms at maximum voltage |
| Maximum switching voltage | 250 V AC |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 8 A AC |
| Supply voltage limits | 20.4…264 V AC/DC |
| Power consumption in VA | 3.5 VA AC |
| Maximum power consumption in W | 1.5 W DC |
| Immunity to microbreaks | 10 ms |
| Resistance across terminals | 150 kOhm at E2-M terminals | 300 kOhm at E1-M terminals | 500 kOhm at E3-M terminals |
| Output contacts | 2 C/O |
| Hysteresis | 5…50 % adjustable of threshold setting |
| delay at power up | 600 ms |
| Maximum measuring cycle | 100 ms measurement cycle as true rms value |
| Repeat accuracy | +/- 0.5 % for input and measurement circuit |
| Measurement error | < 1 % over the whole range with voltage variation | 0.05 %/°C with temperature variation |
| Response time | <= 500 ms |
| Insulation resistance | > 100 MOhm at 500 V DC |
| Overvoltage category | III conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| [Uimp] rated impulse withstand voltage | 5 kV during 1.2/50 µs conforming to IEC 60255-27 |
| Insulation | Between supply and measurement |
| Connections - terminals | Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| Utilisation category | AC-15 conforming to IEC 60947-5-1 | DC-13 conforming to IEC 60947-5-1 | AC-1 conforming to IEC 60947-4-1 | DC-1 conforming to IEC 60947-4-1 |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Safety reliability data | MTTFd = 308.2 years | B10d = 290000 |
| Contacts material | Cadmium free |
| Control type | With test button |
| Width | 22.5 mm |
| Net weight | 0.11 kg |
| Electromagnetic compatibility | Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 | Immunity for industrial environments conforming to IEC 61000-6-2 | Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 | Emission standard for industrial environments conforming to IEC 61000-6-4 | Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 | Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 | Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 | Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 | Conducted and radiated emissions class B group 1 conforming to CISPR 11 | Conducted and radiated emissions class B conforming to CISPR 22 |
| Ambient air temperature for operation | -20…50 °C at 60 Hz | -20…60 °C at 50 Hz |
| Standards | IEC 60255-1 |
| Product certifications | CE | CCC | GL | RCM | UL | EAC | CSA |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 93…97 % at 25…55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.075 mm (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 | 1 gn (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 | 0.035 mm (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 | 0.5 gn (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27 | 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP40 (housing) conforming to IEC 60529 | IP50 (front panel) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Dielectric test voltage | 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.6 cm |
| Package 1 Width | 8.2 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 121.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.252 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 640 |
| Package 3 Height | 80.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 60.0 cm |
| Package 3 Weight | 93.22 kg |
