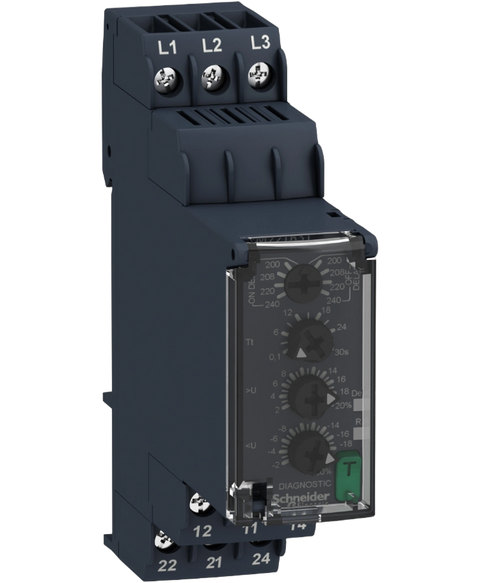

Schneider Electric RM22TR31
three-Phase Voltage control relay 200…240Vac, 2 C,O
This Schneider Electric RM22TR31 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Monitoring relays range and is referenced internally as PartLogic SKU PL26928084895.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$216.87
(inc. GST)
In Stock
| Range of product | Harmony Control Relays |
| Relay type | Control relay |
| Product or component type | 3-phase control relay |
| Network number of phases | 3 phases |
| Relay name | RM22TR |
| Relay monitored parameters | Phase sequence | Phase failure detection | Overvoltage and undervoltage detection |
| Time delay type | Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault |
| Switching capacity in VA | 2000 VA |
| Measurement range | 200...240 V voltage AC |
| Contacts type and composition | 2 C/O |
| Reset time | 1500 ms at maximum voltage |
| Maximum switching voltage | 250 V AC |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 8 A AC |
| [Us] rated supply voltage | AC/DC |
| Supply voltage limits | 160…288 V AC |
| operating limits | - 20 % + 20 % Un |
| Power consumption in VA | 10 VA at 240 V AC 60 Hz |
| Voltage detection threshold | < 100 V AC |
| supply voltage frequency | 50...60 Hz +/- 10 % |
| Output contacts | 2 C/O |
| Setting accuracy of the switching threshold | +/- 10 % of the full scale |
| Switching threshold drift | <= 0.05 % per degree centigrade depending permissible ambient air temperature | <= 1 % within the supply voltage range |
| Setting accuracy of time delay | 10 P |
| Time delay drift | <= 0.05 % per degree centigrade depending permissible ambient air temperature | <= 1 % within the supply voltage range |
| Hysteresis | 2 % fixed of selectable |
| Run-up delay at power-up | 650 ms |
| Maximum measuring cycle | 150 ms measurement cycle as true rms value |
| Threshold adjustment voltage | 2...20 % of Un selected |
| Voltage range | 200...240 V phase to phase |
| Repeat accuracy | +/- 0.5 % for input and measurement circuit | +/- 3 % for time delay |
| Measurement error | < 1 % over the whole range with voltage variation | < 0.05 %/°C with temperature variation |
| Response time | <= 300 ms |
| Overvoltage category | III conforming to IEC 60664-1 | III conforming to UL 508 |
| Insulation resistance | > 100 MOhm at 500 V DC conforming to IEC 60255-27 |
| Mounting position | Any position |
| Connections - terminals | Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| Status LED | LED (yellow) relay ON | LED (green) power ON |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| Utilisation category | AC-15 conforming to IEC 60947-5-1 | DC-13 conforming to IEC 60947-5-1 | AC-1 conforming to IEC 60947-4-1 | DC-1 conforming to IEC 60947-4-1 |
| [Un] rated nominal voltage | , self-powered |
| Safety reliability data | MTTFd = 388.1 years | B10d = 350000 |
| Contacts material | Cadmium free |
| Control type | With test button |
| Width | 22.5 mm |
| Net weight | 0.09 kg |
| Immunity to microbreaks | 10 ms |
| Electromagnetic compatibility | Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 | Immunity for industrial environments conforming to IEC 61000-6-2 | Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 | Emission standard for industrial environments conforming to IEC 61000-6-4 | Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 | Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 | Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 | Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 | Conducted and radiated emissions class B group 1 conforming to CISPR 11 | Conducted and radiated emissions class B conforming to CISPR 22 |
| Standards | IEC 60255-1 |
| Product certifications | CSA | CCC | EAC | RCM | CE | GL | UL |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…50 °C at 60 Hz | -20…60 °C at 50 Hz AC/DC |
| Relative humidity | 93…97 % at 25…55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.075 mm (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 | 1 gn (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 | 0.035 mm (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 | 0.5 gn (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27 | 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP40 (housing) conforming to IEC 60529 | IP50 (front panel) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 | 3 conforming to UL 508 |
| Dielectric test voltage | 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.2 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 2.6 cm |
| Package 1 Weight | 101.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.495 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 640 |
| Package 3 Height | 50.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 86.18 kg |
