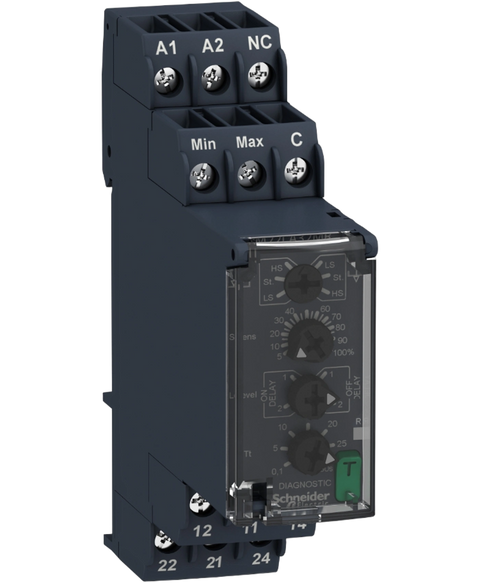

Schneider Electric RM22LA32MR
Level control relay, 24-240VAC,dc coil, 50,60Hz, 8A, DIN rail mount, rohs compliant
This Schneider Electric RM22LA32MR is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Monitoring relays range and is referenced internally as PartLogic SKU PL26805681473.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$245.22
(inc. GST)
In Stock
| Range of product | Harmony Control Relays |
| Relay type | Level control relay |
| Product or component type | Level control relay |
| Relay name | RM22L |
| Relay monitored parameters | Detection by resistive probes |
| time delay | Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault |
| Switching capacity in VA | 2000 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 8 A AC |
| Utilisation category | AC-15 conforming to IEC 60947-5-1 | DC-13 conforming to IEC 60947-5-1 | AC-1 conforming to IEC 60947-4-1 | DC-1 conforming to IEC 60947-4-1 |
| Contacts type and composition | 2 C/O |
| Maximum switching voltage | 250 V AC |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Supply voltage limits | 20.4…264 V AC/DC |
| power consumption | 1.5 W DC |
| Output contacts | 2 C/O |
| nominal output current | 8 A |
| delay at power up | 2.5 s | 0.6 s |
| Maximum electrode voltage | 12 V AC |
| Maximum electrode current | 1 mA |
| Repeat accuracy | +/- 2 % for time delay |
| Measurement error | < 1 % over the whole range with voltage variation | 0.05 %/°C with temperature variation |
| Maximum cable distance between devices | 100 m between probe and delay |
| Sensitivity scale | 0.25...5 kOhm LS (Low Sensitivity) | 5...100 kOhm St (Standard Sensitivity) | 50...1000 kOhm HS (High Sensitivity) |
| Sensitivity adjustment | 5…100 % |
| Maximum supply current for sensors | 1 mA |
| Cable capacitance | 1 nF at HS (High Sensitivity) for probe cable | 2.2 nF at St (Standard Sensitivity) for probe cable | 4.7 nF at LS (Low Sensitivity) for probe cable |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation | Between supply and measurement |
| Connections - terminals | Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Mounting position | Any position |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| Contacts material | Cadmium free |
| Measurement range | 0.25...1000 kOhm |
| Safety reliability data | MTTFd = 182.6 years | B10d = 170000 |
| Width | 22.5 mm |
| Control type | With test button |
| Net weight | 0.11 kg |
| Immunity to microbreaks | 100 ms DC | 90 ms AC |
| Electromagnetic compatibility | Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 | Immunity for industrial environments conforming to IEC 61000-6-2 | Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 | Emission standard for industrial environments conforming to IEC 61000-6-4 | Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 | Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 | Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 | Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 | Conducted and radiated emissions class B group 1 conforming to CISPR 11 | Conducted and radiated emissions class B conforming to CISPR 22 |
| Standards | IEC 60255-1 |
| Product certifications | UL | RCM | CSA | GL | CCC | CE | EAC |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 93…97 % at 25…55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.075 mm (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 | 1 gn (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 | 0.035 mm (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 | 0.5 gn (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27 | 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP40 (housing) conforming to IEC 60529 | IP50 (front panel) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Dielectric test voltage | 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.6 cm |
| Package 1 Width | 8.2 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 122.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.492 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 640 |
| Package 3 Height | 60.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 60.0 cm |
| Package 3 Weight | 95.14 kg |
