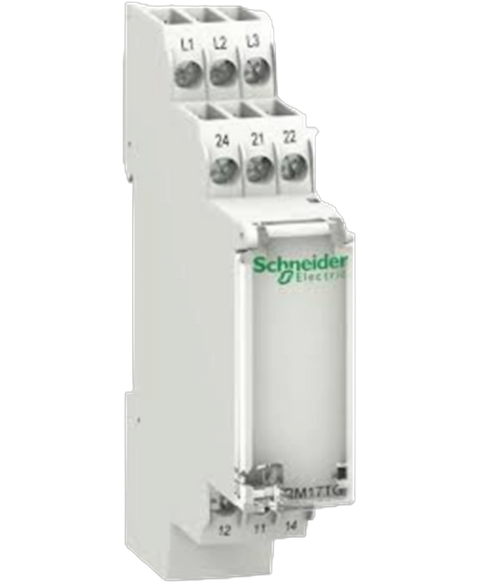

Schneider Electric RM17TG20
Control relay, rm17-series, 3-phase, 5A, 208-440VAC, 50,60Hz, 2 co, led indicator, w,o time delay, screw type terminal, DIN rail mount, -20 to +50 degree c, IP20,30
This Schneider Electric RM17TG20 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Monitoring relays range and is referenced internally as PartLogic SKU PL26801449718.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Type | Non-Latching |
| Contact Current Rating | 5 A |
| Current Rating | 5 A |
| Height | 90 mm |
| Length | 72 mm |
| Max Operating Temperature | 50 °C |
| Max Supply Voltage (AC) | 440 V |
| Min Operating Temperature | -20 °C |
| Operating Supply Voltage | 440 V |
| Power Consumption | 22 W |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Switching Voltage | 250 V |
| Termination | Screw |
| Throw Configuration | SPST |
| Width | 17.5 mm |
