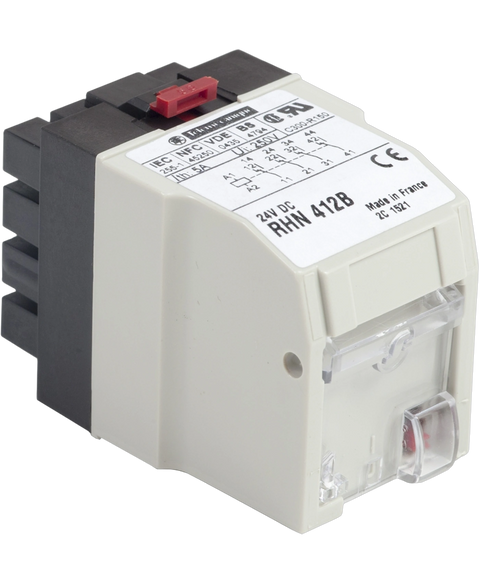

Schneider Electric RHN412B
Discontinued by manufacturer 01,10,21, plug in relay, instantaneous, non-latching, 5A, 4pdt, 24VDC, 250 v, -5 to +40 degree c
This Schneider Electric RHN412B is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26897705387.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Relay |
| Product or component type | Plug-in relay |
| Device short name | RHN |
| Contacts type and composition | 4 C/O |
| Contact operation | Instantaneous | Standard |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 5 A 40 °C |
| status LED | Without |
| Control type | Manual control |
| Coil interference suppression | Without |
| [Ui] rated insulation voltage | 250 V |
| Test levels | Level A group mounting |
| Operating position | Any position |
| Minimum switching capacity | 150 mVA at 10 mA | 150 mVA, 1 V |
| Contact bounce time | <= 10 ms |
| Maximum voltage drop | <100 V for 3 A at 24 V |
| Average resistance | 30 mOhm at 20 °C |
| Average coil consumption | 1.6 W at 20 °C |
| Control circuit voltage limits | 0.8...1.1 Uc conforming to IEC 60255 |
| Drop-out voltage threshold | 0.1...0.3 Uc |
| Time constant | 12 ms for open contact(s) | 15 ms for closed contact(s) |
| Mechanical durability | 20000000 cycles |
| maximum operating rate | 6 cyc/mn |
| Operating time | 1...4 ms for energisation/de-energisation | 1.2...4 ms for de-energisation/energisation | 10...20 ms between energisation of coil and closing of NO contact at 20 °C | 2...7 ms between de-energisation of coil and closing of NC contact at 20 °C |
| CAD overall width | 33 mm |
| CAD overall height | 43 mm |
| CAD overall depth | 54 mm |
| Terminals description ISO n°1 | (11-12-14)OC | (21-22-24)OC | (41-42-44)OC | (31-32-34)OC | (A1-A2)CO |
| Net weight | 0.09 kg |
| Compatibility code | RHN |
| Standards | NF C 45-250 | VDE 0435 | IEC 60255 | BS 4794 |
| Product certifications | USSR | BV | CSA | EDF | ASE | UR |
| Protective treatment | TC |
| Dielectric strength | 2500 V |
| Ambient air temperature for operation | -5…40 °C conforming to IEC 60255 |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 6 gn (f= 10…55 Hz) conforming to IEC 60068-2-6 | 6 gn (f= 10…55 Hz) conforming to NF C 20-616 |
| Shock resistance | 50 gn for 11 ms conforming to NF C 20-608 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.2 cm |
| Package 1 Width | 5.5 cm |
| Package 1 Length | 7.8 cm |
| Package 1 Weight | 94 g |
