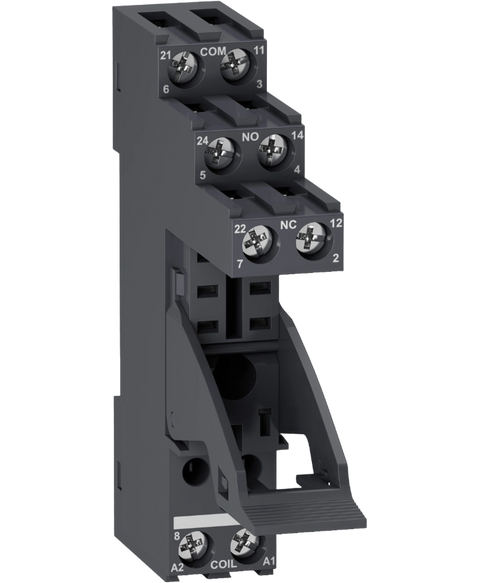

Schneider Electric RGZE1S48M
Socket, separate contact, 5 A, relay type RXG2, screw connector, 250 V AC
This Schneider Electric RGZE1S48M is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Sockets range and is referenced internally as PartLogic SKU PL26904524754.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RXG with 2 C/O contact |
| Contacts type and composition | 2 C/O |
| [Ui] rated insulation voltage | 250 V |
| [Uimp] rated impulse withstand voltage | 6 kV between coil and contact with reinforced insulation | 4 kV between poles with basic insulation | 4 kV between terminals and DIN rail with basic insulation |
| [Ue] rated operational voltage | 250 V conforming to IEC | 300 V conforming to UL |
| Dielectric strength | 5 kV between coil and contact with reinforced insulation | 3 kV between poles with basic insulation | 3 kV between terminals and DIN rail with basic insulation |
| Connections - terminals | Screw terminals, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end | Screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end | Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end | Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end |
| Fixing mode | Screw (panel) | Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 6…7 mm |
| Contact terminal arrangement | Separate |
| screw type | M3 |
| Overvoltage category | III |
| Pollution degree | 3 |
| Standards | CSA C22.2 No 14 | IEC 61984 | UL 508 |
| Product certifications | EAC | CE | CSA | UL | DNV-GL |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Relative humidity | 10…85 % |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.600 cm |
| Package 1 Width | 6.800 cm |
| Package 1 Length | 7.900 cm |
| Package 1 Weight | 40.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 8.600 cm |
| Package 2 Length | 16.500 cm |
| Package 2 Weight | 444.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 180 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 8.544 kg |
