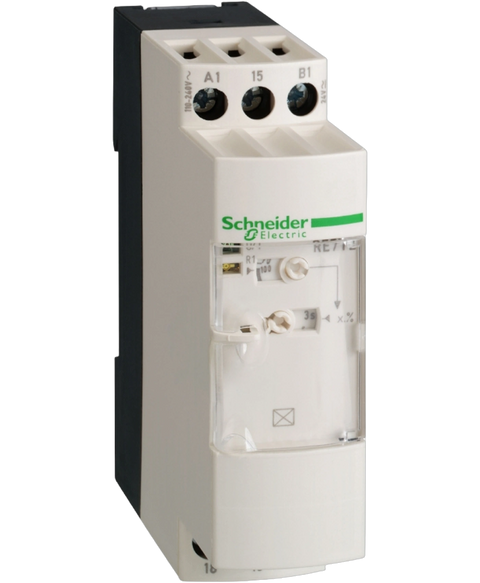

Schneider Electric RE7TL11BU
Discontinued by manufacturer, time delay relay, 5A, 24VAC,dc, 110-240VAC, 50,60Hz, 0.05 s - 300 h
This Schneider Electric RE7TL11BU is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Timers > Zelio time range and is referenced internally as PartLogic SKU PL26899069033.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Zelio Time |
| Product or component type | Industrial timing relay |
| Component name | RE7 |
| Time delay type | A |
| Time delay range | 0.05 s...300 h |
| Discrete output type | Relay |
| Contacts material | 90/10 silver nickel contacts |
| Width pitch dimension | 22.5 mm |
| [Us] rated supply voltage | 110...240 V AC 50/60 Hz | 24 V AC/DC 50/60 Hz |
| Voltage range | 0.85...1.1 Us |
| Connections - terminals | Screw terminals, 2 x 1.5 mm² flexible with cable end | Screw terminals, 2 x 2.5 mm² flexible without cable end |
| tightening torque | 0.6…1.1 N.m |
| Setting accuracy of time delay | +/- 10 % of full scale |
| Repeat accuracy | +/- 0.2 % |
| Temperature drift | < 0.07 %/°C |
| Voltage drift | < 0.2 %/V |
| Minimum pulse duration | 20 ms |
| reset time | 50 ms |
| Maximum switching voltage | 250 V AC/DC |
| Mechanical durability | 20000000 cycles |
| [Ith] conventional free air thermal current | 8 A |
| Maximum [Ie] rated operational current | 2 A DC-13 24 V at 70 °C conforming to IEC 60947-5-1/1991/VDE 0660 | 0.1 A DC-13 250 V at 70 °C conforming to IEC 60947-5-1/1991/VDE 0660 | 0.2 A DC-13 115 V at 70 °C conforming to IEC 60947-5-1/1991/VDE 0660 | 3 A AC-15 at 70 °C conforming to IEC 60947-5-1/1991/VDE 0660 |
| Minimum switching capacity | at 12 V 10 mA |
| Marking | CE |
| Overvoltage category | III conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V between contact circuit and control inputs IEC certified | 250 V between contact circuit and power supply IEC certified | 300 V between contact circuit and control inputs CSA certified | 300 V between contact circuit and power supply CSA certified |
| Supply disconnection value | > 0.1 Uc |
| Operating position | Any position without derating |
| Surge withstand | 2 kV conforming to IEC 61000-4-5 level 3 |
| Power consumption in VA | 0.7 VA at 24 V | 1.8 VA at 110 V | 8.5 VA at 240 V |
| Maximum power consumption in W | 0.5 W at 24 V |
| Terminal description | (15-16-18)OC_OFF | (B1-A2)CO | ALT |
| Height | 78 mm |
| Width | 22.5 mm |
| Depth | 80 mm |
| Net weight | 0.15 kg |
| Immunity to microbreaks | 3 ms |
| Standards | EN/IEC 61812-1 |
| Product certifications | CSA | GL | UL |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -20…60 °C |
| Relative humidity | 15…85 % 3K3 conforming to IEC 60721-3-3 |
| Vibration resistance | 0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| IP degree of protection | IP20 (terminals) | IP50 (housing) |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Dielectric strength | 2.5 kV |
| Non-dissipating shock wave | 4.8 kV |
| Resistance to electrostatic discharge | 6 kV in contact conforming to IEC 61000-4-2 level 3 | 8 kV in air conforming to IEC 61000-4-2 level 3 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| Disturbance radiated/conducted | CISPR 11 group 1 - class A | CISPR 22 - class A |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
